User Guide For CS-Cart Instamojo Payment Gateway Add-on

Updated 4 July 2024

Overview

Instamojo powers small, independent businesses, MSMEs & startups with online stores and online payment solutions to help them run an eCommerce business successfully.

CS-Cart Instamojo Payment Gateway Add-on enables you to accept payments securely.

At the same time, this solution enables you to deliver seamless payment experiences to consumers.

Features of CS-Cart Instamojo Payment Gateway

  • Admin can easily integrate Instamojo Payment Gateway with the CS-Cart.
  • Any user/customer can easily make the payment.
  • Helps to minimize costs and risks.
  • Instamojo is verified by Visa & Master Card and therefore Instamojo is a secure code-enabled gateway.
  • The add-on does not need any modification in core files.
  • Well integrated with CS-Cart, CS-Cart Multivendor, CS-Cart Multivendor-Plus, and CS-Cart Multivendor Ultimate.

Check a brief overview of the plugin –

opgqcwVI_-4

Start your headless eCommerce
now.
Find out More

The Flow Of Installation And Configuration

Step 1

When you’ll download the “CS-Cart Instamojo payment gateway” add-on, you’ll get one zip file and the install.txt file.

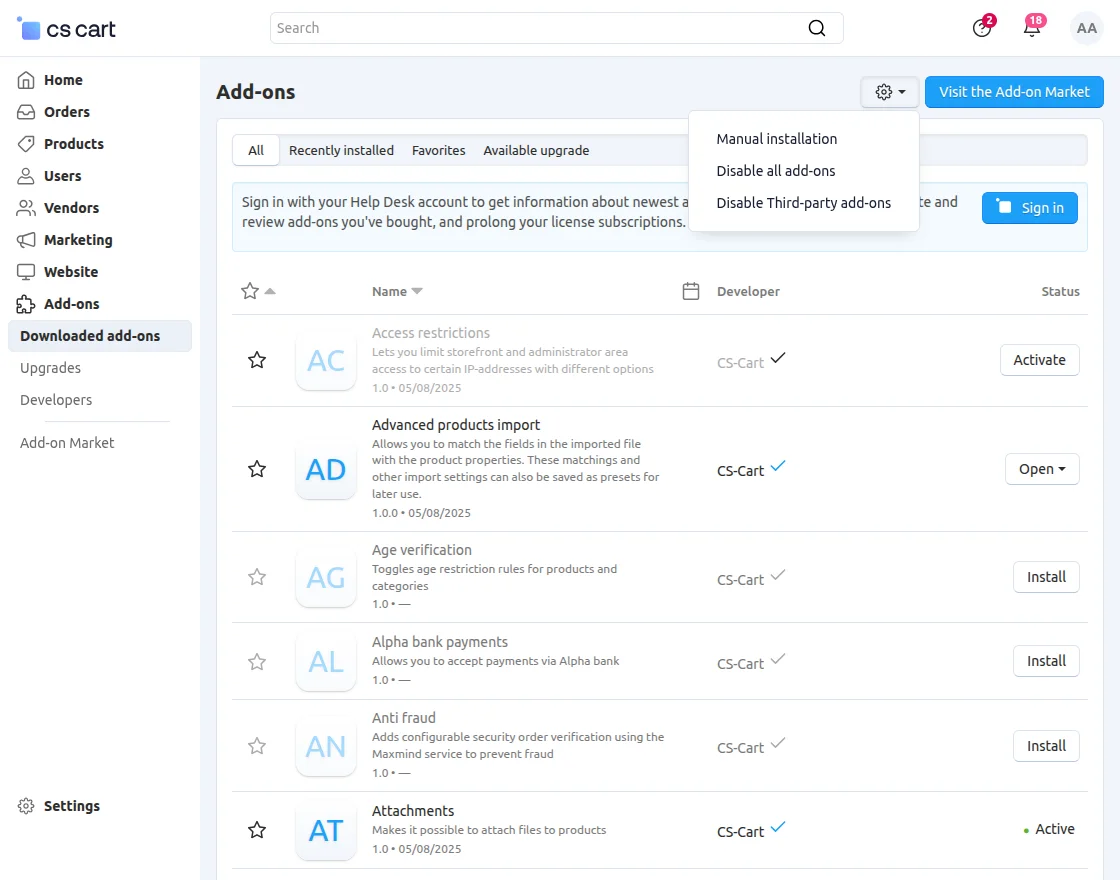

Read it carefully and follow it. Firstly click on the gear icon then manual installation to upload the zip file.

Installation of instamojo

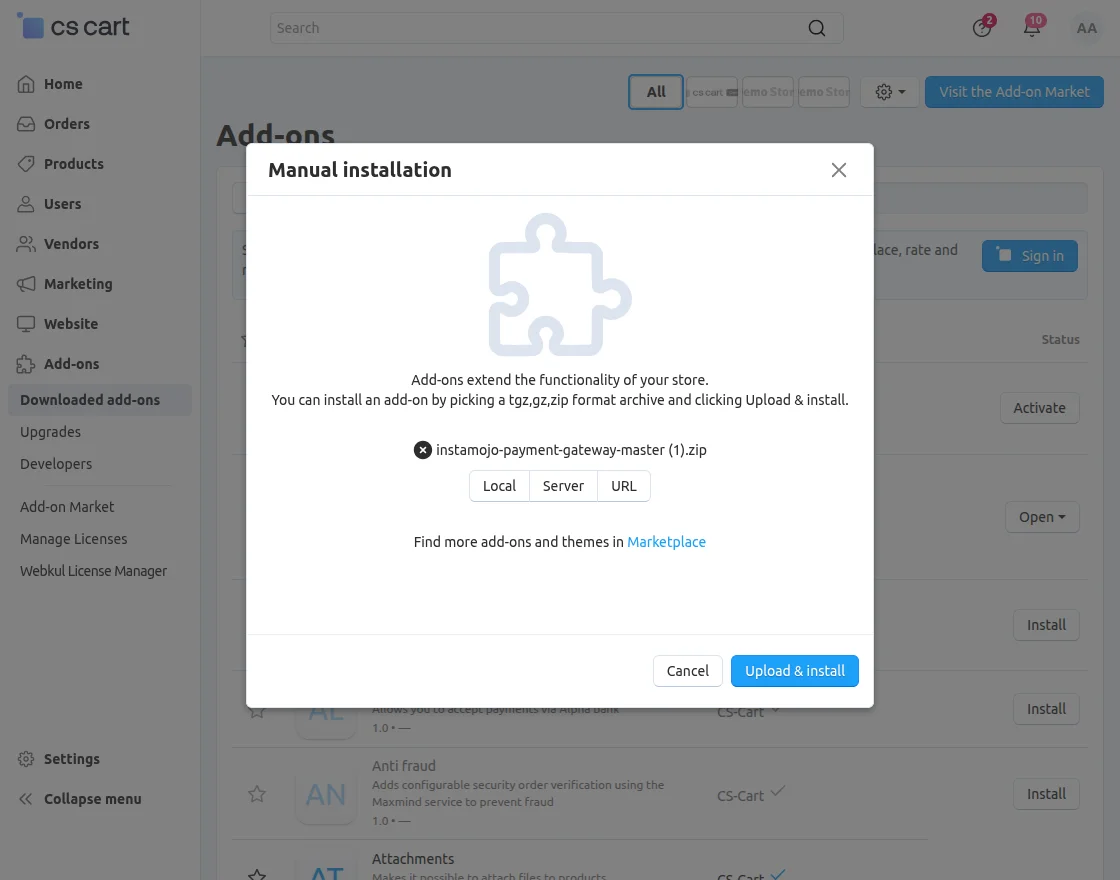

Now, Click on “Local” to browse the zip file and then click on “Upload & Install” as shown in the below snapshot.

Instamojo Payment gateway installation

After installation of the add-on, you will find the “Instamojo payment gateway” add-on in the list of the available add-on.

Step 2

Now you need to configure the payment method.

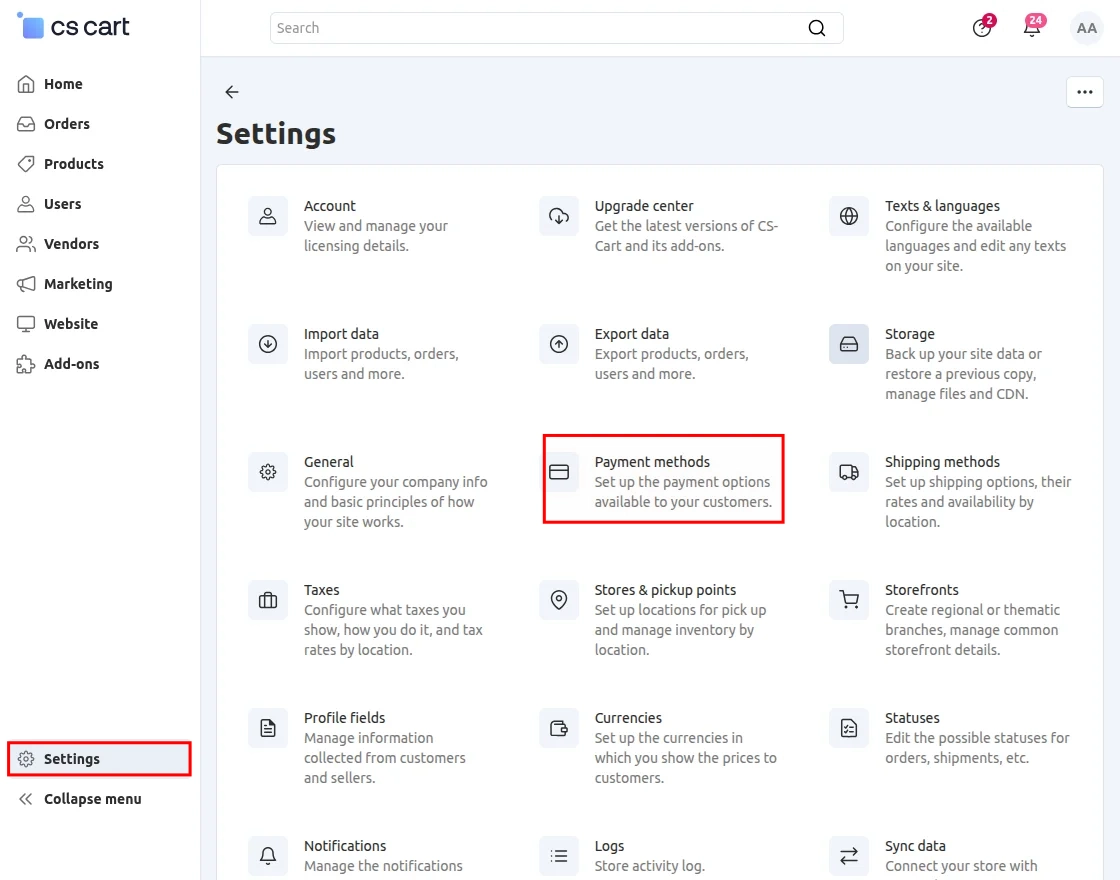

For that, you need to go to Administration >> Payment Methods >> then click on the plus icon to create and configure a new payment method.

Add a new paymentt method

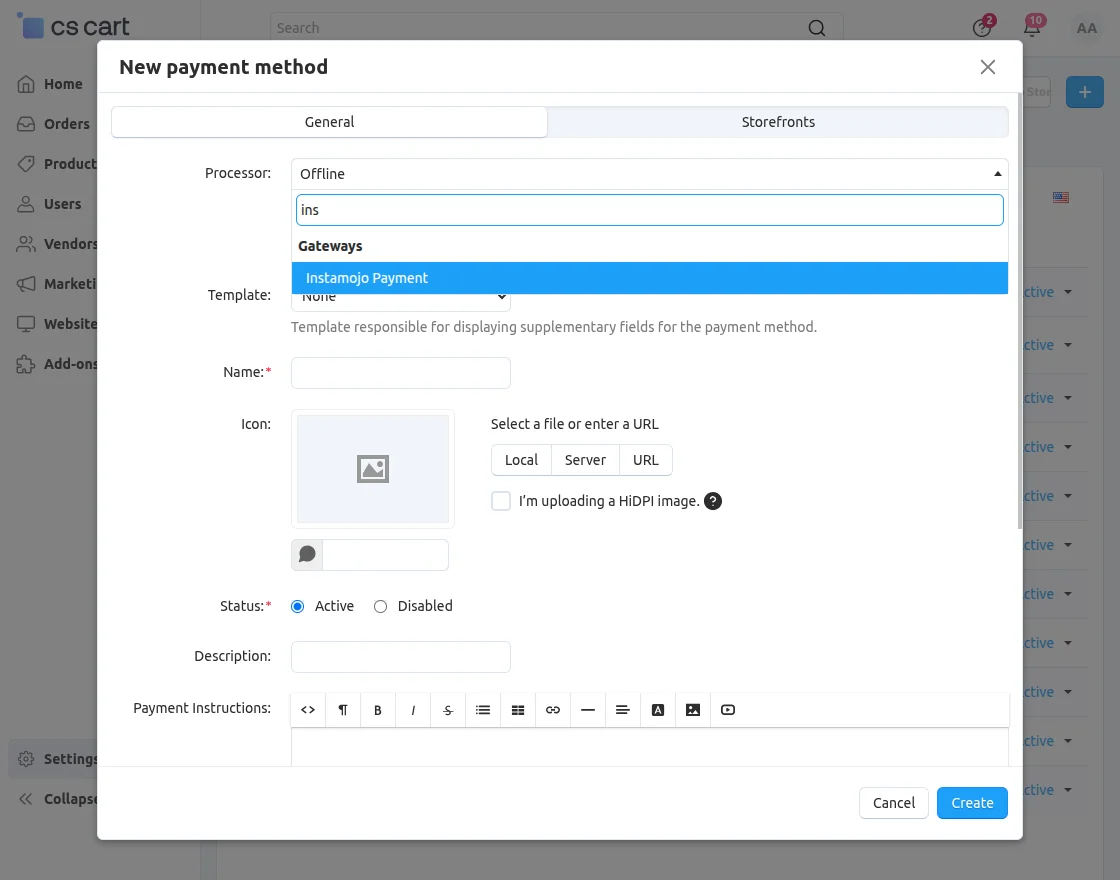

Now, we’ll add the general settings, Enter the details as shown below.

Instamojo General Settings

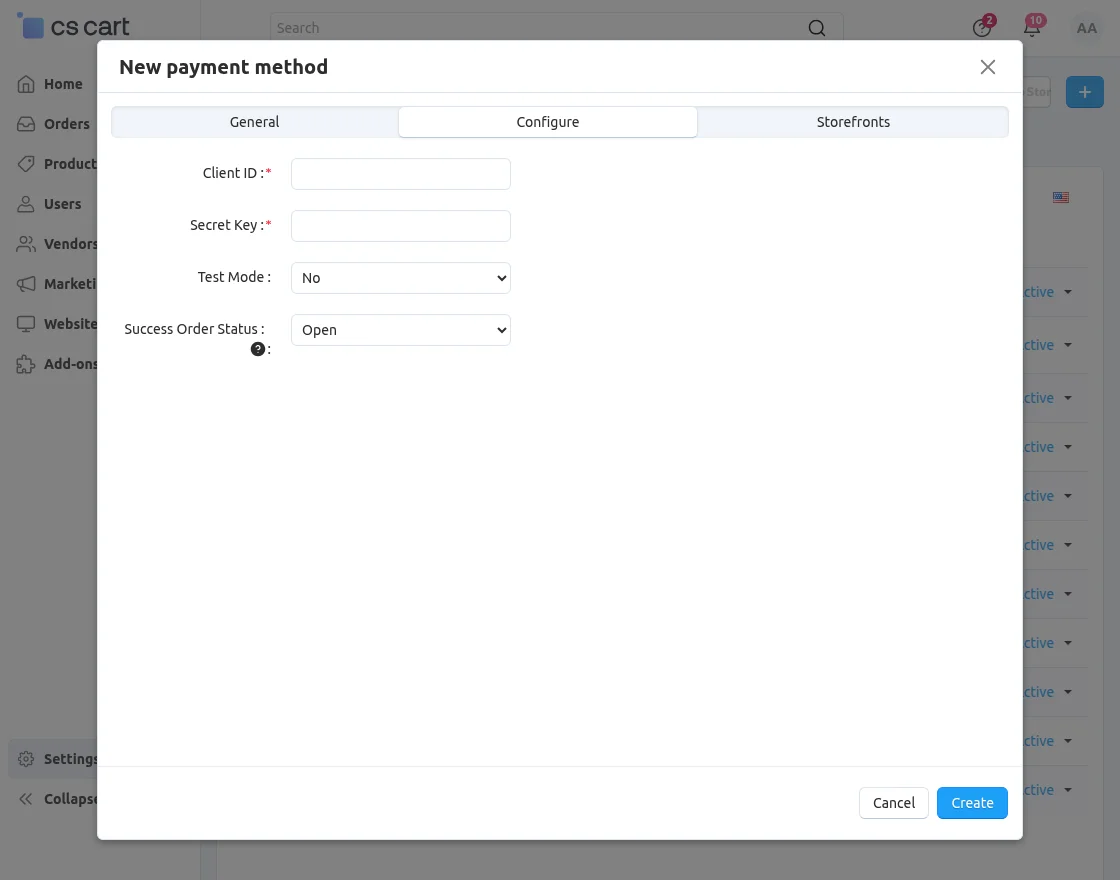

After the above-mentioned general setting, click on the configure tab for the configuration as shown below.

Instamojo configuration

NOTE – You will get the client ID and secret key on your Instamojo merchant account.

The Installation and Configuration of the add-on have been completed.

You can see the newly created payment method in the payment method list of your CS-Cart panel. Make sure, you have activated the payment method in order to use it.

Instamojo payment gateway created

Front-End View

After the successful configuration of the payment method, the payment method will be available for customers at the front end.

To make a payment, the customer needs to select the option as shown below in the snapshot and enter the required details to make a payment.

Instamojo Payment gateway visible

The customer will click on place order and redirected to the following page.

Now the customers need to enter the card details as required and click on the pay button.

Payment Page

Now in the next step, the customer needs to enter the  MasterCard Secure Code to complete the payment.

Now we will click on the success button. Then Payment will be successful.

Transaction Status

Customer view order details along with the payment method as shown below:

Instamojo Payment method visible

Back-End View

Admin can view the order details Order > View Order , Here payment method is visible along with the order details.

Admin View order details

Support

That’s all for the add-on. Still, have any issues then feel free to write here on Http://Webkul.Uvdesk.Com  and let us know your views to make the module better.

Please explore our CS-Cart customization services and Quality CS-Cart add-ons.

Current Product Version - 1.0

Supported Framework Version - (4.13.x - 4.18.x)

. . .
