    CS-Cart CCAvenue Payment Gateway

    Updated 28 December 2021

    CCAvenue is a popular Payment Gateway that allows online merchants to process their all online transaction. This is authorized by Indian financial institutions and one of the most secure payment gateway to transact money for an online shopping. So, now integrate a secure payment gateway, CCAvenue with CS-Cart via addon CS-Cart CCAvenue Payment Gateway.

    With CCAvenue, your e-commerce payments are simple and safe for you and your customers. Your buyer will be redirected to CCAvenue hosted payment page whose look and feel can be customized to suit your website. Upload your brand logo and modify the color scheme to create a truly branded and seamless experience for your customers.


    • Well integrated with CS-Cart & Multi-Vendor.
    • Payment option with hosted checkout method on CCAvenue Secure payment page.
    • Also it supports the functionality to authorize and capture the payment.
    • Functionality to save CCAvenue payment response at admin end.
    • And Works well in both Test and Production modes of payment.
    • Offers an end-to-end security solution for fraud prevention.
    • Moreover easy to configure and manage at admin end.


    1. After purchasing this add-on when a customer put any query related to this add-on, he must provide us  Integration PDF that only a client get from his CCAvenue account for any modification.
    2. CCAvenue credentials are domain specific.

    Note: Please note that live demo link is not available due to unavailability of sandbox credentials. For a detailed process flow of the add-on, Please go through this blog post.

    How To Upload And Install:

    After downloading CS-Cart CCAvenue Payment Gateway add-on you will get one zip file, one install.txt file, and relevant User Guide manual doc. Read it carefully for proper configuration.

    Find the Best CS-Cart
    Development Company
    Read More

    Go to Manage Add-ons, click on “+” as shown below in the snapshot.


    Click on “Local” to browse the zip file and then click on “Upload & Install” as shown below in snapshot.

    CS-Cart CCAvenue Payment Gateway

    After successful installation, there will be User Guide link and support link for quick support from Webkul’s end. Here you can see the installed add-on.

    addon configure

    Payment Method Configuration At Backend

    Our add-on CS-Cart CCAvenue Payment Gateway supports hosted payment solution on the CCAvenue payment page itself. Let’s see the process to configure CCAvenue Payment Gateway at CS-Cart end.

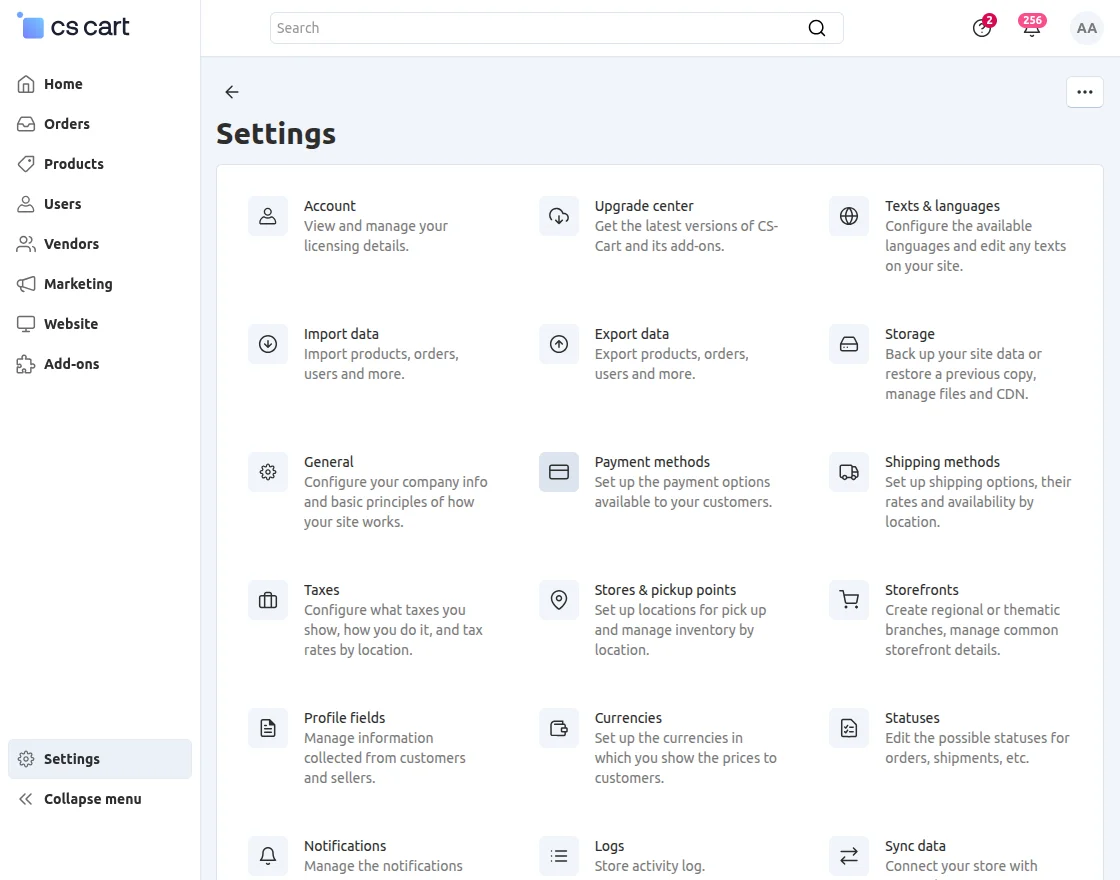

    Go to “Administration” tab and click on “Payment methods”.

    Administration panel

    Click on “+” to generate a new payment method as shown below in the snapshot.

    Add Payment method

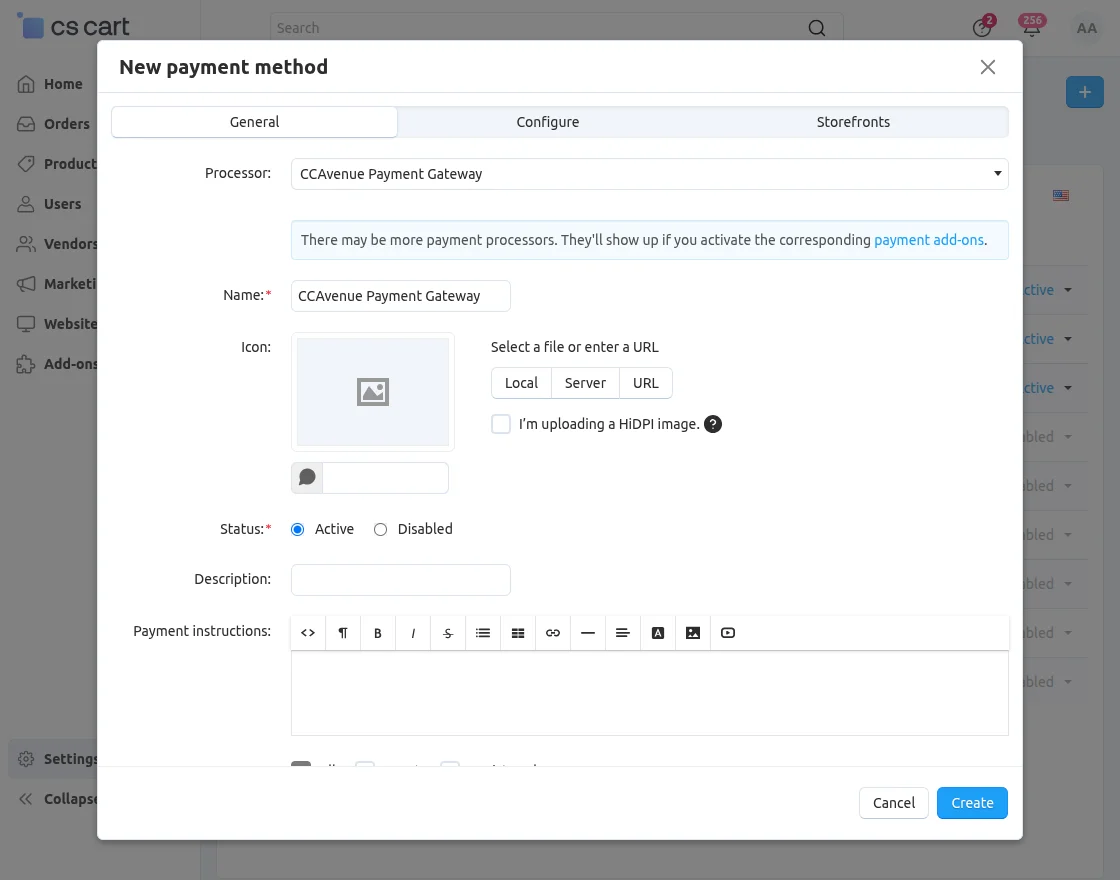

    Set the parameters as shown below in the snapshot

    general settings

    • Set the name of the payment method.
    • For check out, choose the processor as “CCAvenue Payment Gateway”.
    • Template for this payment processor will be “cc_outside.tpl”.
    • Configure the other tabs accordingly as shown below in the snapshot.

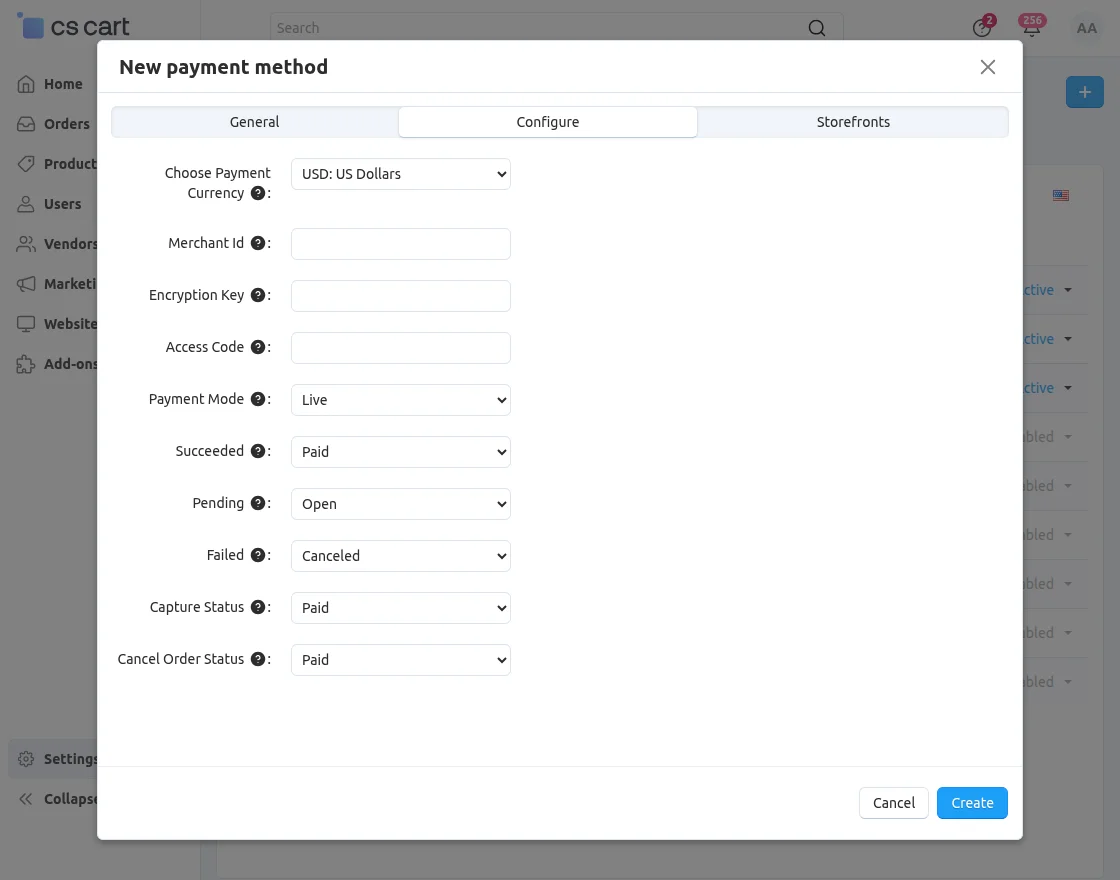

    Click on “Configure” and set the parameters as shown below in the snapshot.

    CCAvenue settings

    • Select the currency for CCAvenue Payments at your store. Make sure that this is the same currency which is used in your CCAvenue account.
    • Enter the CCAvenue credentials which include Merchant Id, Encryption Key, and Access Code.
    • Set the mode of payment (Test or Live)
    • Select the default order status for the successful, pending and failed transactions.


    • Set the order status for capturing the payment.
    • Set the order status for canceling the payment.

    Click on Create button to add this payment method. This is how you can add CCAvenue Payment Method in your CS-Cart Store.

    Front End View

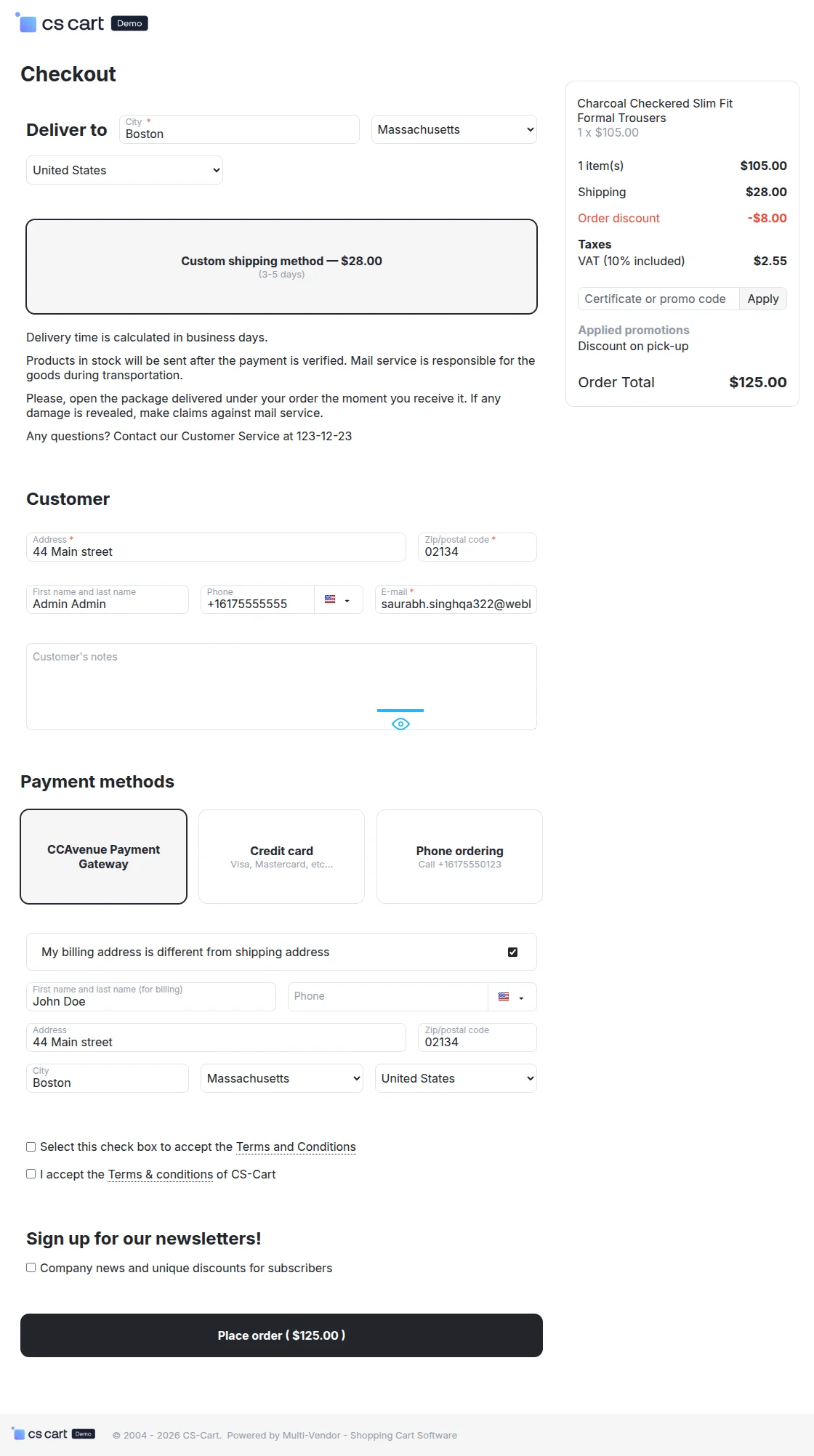

    Once the payment method is configured,  New option for payment via CCAvenue will be available for customers at the front end. So for payment, customer needs to select the option as shown below in the snapshot and submit the order.

    front end view

    Finally customer will get redirected to the outside payment page of CCAvenue as shown below. Customer needs to enter the card details & make payment.


    This is how the customer can pay via any card using CCAvenue payment method.

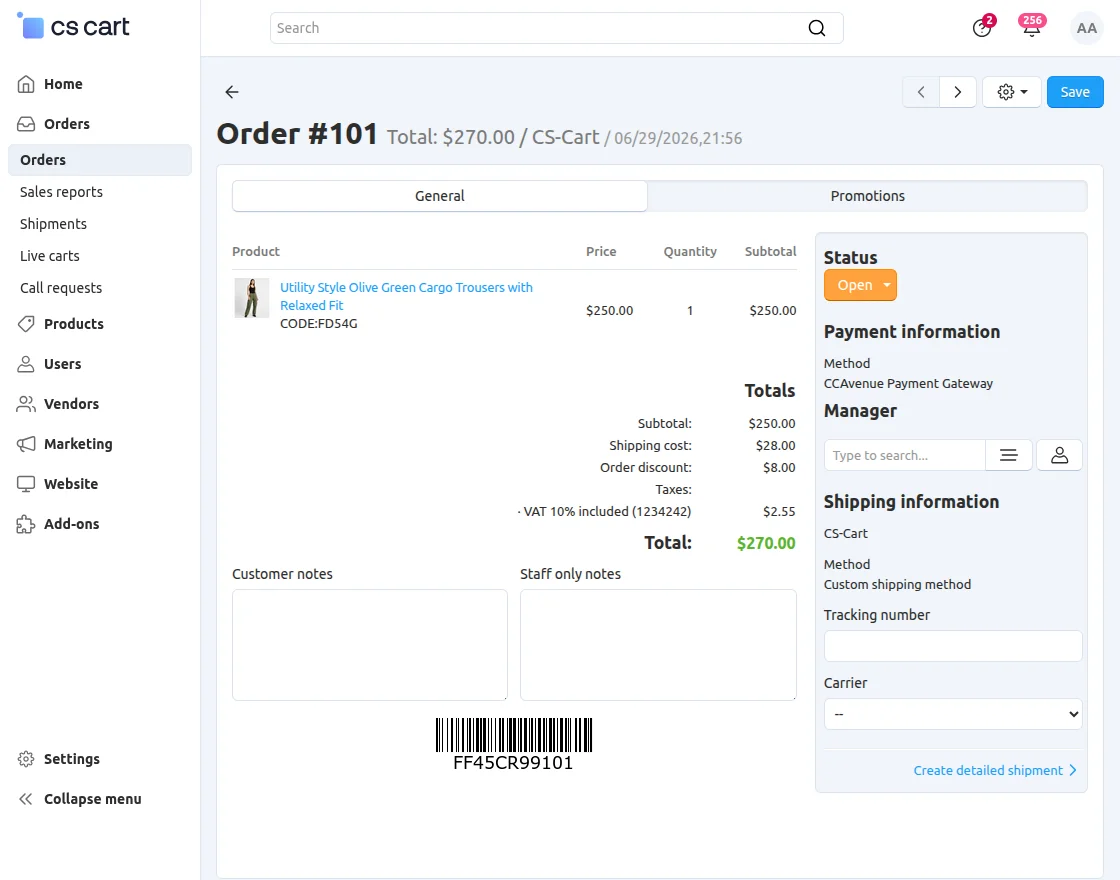

    Payment Response At Backend

    Saved payment response at the backend in the order details page includes –

    • Bank Reference Number.
    • Tracking Id
    • Payment Mode
    • Card Type



    This is all about CS-Cart CCAvenue Payment Gateway. Still, have any issue, feel free to contact us at and let us know your views to make the module better.

    Besides this you can explore our cs-cart Development Services and Quality cs-cart add-ons

    Current Product Version - 1.0

    Supported Framework Version - 4.7.x, 4.8.x, 4.9.x

    Blog Version - 4.7.x, 4.8.x, 4.9.x
    • Version 4.9.x, 4.8.x, 4.7.x
    • Version 4.7.x, 4.8.x, 4.9.x
    . . .
