    CS-Cart GPGCheckout Payment Gateway

    CS-Cart GPGCheckout Payment Gateway:
    This magnificent add-on integrates a secure payment gateway GPGCheckout with CS-Cart. Global Payment Gateway(GPG) is the leading payment service provider certified PCI DSS from Visa and MasterCard in Africa and the Middle East regions.This allows you greater control over the checkout experience so that you can test and implement the most effective experience for your store.

    Features

    • Guarantees a payment environment that complies with VISA and MasterCard Regulations
    • Redirects customers to a secure web page so no need to worry about PCI.
    • User friendly interface to receive online payments.
    • Provides fully secure payment to handle risk management system.
    • Easy to configure and manage at admin end.
    • Well integrated with CS-Cart Multi-Vendor.

    Please note that live demo link is not available due to unavailability of sandbox credentials. For detailed process flow of the add-on, Please go through this blogpost.

    How To Upload and Install

    After downloading CS-Cart GPGCheckout Payment Gateway, you will get a zip file and install.txt . Read the install.txt carefully and configure it accordingly.

    Go to “Manage add-ons”, click on “+” to upload and install the zip file as shown below.
    Upload
    Click on “Local” to browse the zip file and then click on “Upload & Install” as shown below in snapshot.
    CS-Cart GPGCheckout Payment Gateway

    Payment Method Configuration

    Go to “Administration” tab and click on “Payment methods”.

    Backend

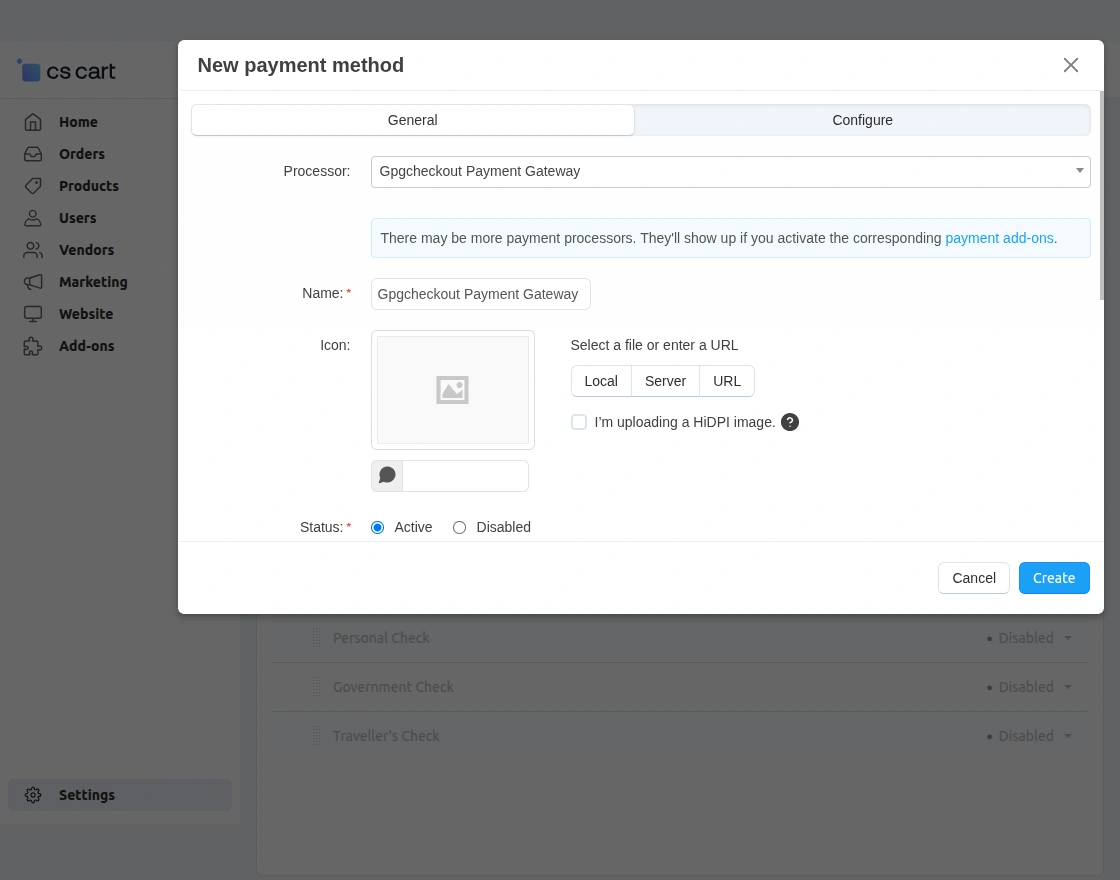

    Click on “+” to create a new payment method.

    Add Payment Method

    Set the parameters as shown below in the snapshot.

    • Set the name of the payment method.
    • For checkout choose the processor as “Gpgcheckout Payment Gateway”.
    • Select template as “cc_outside.tpl” from the dropdown.
    • Configure the tabs accordingly as shown below in the snapshot.

    add

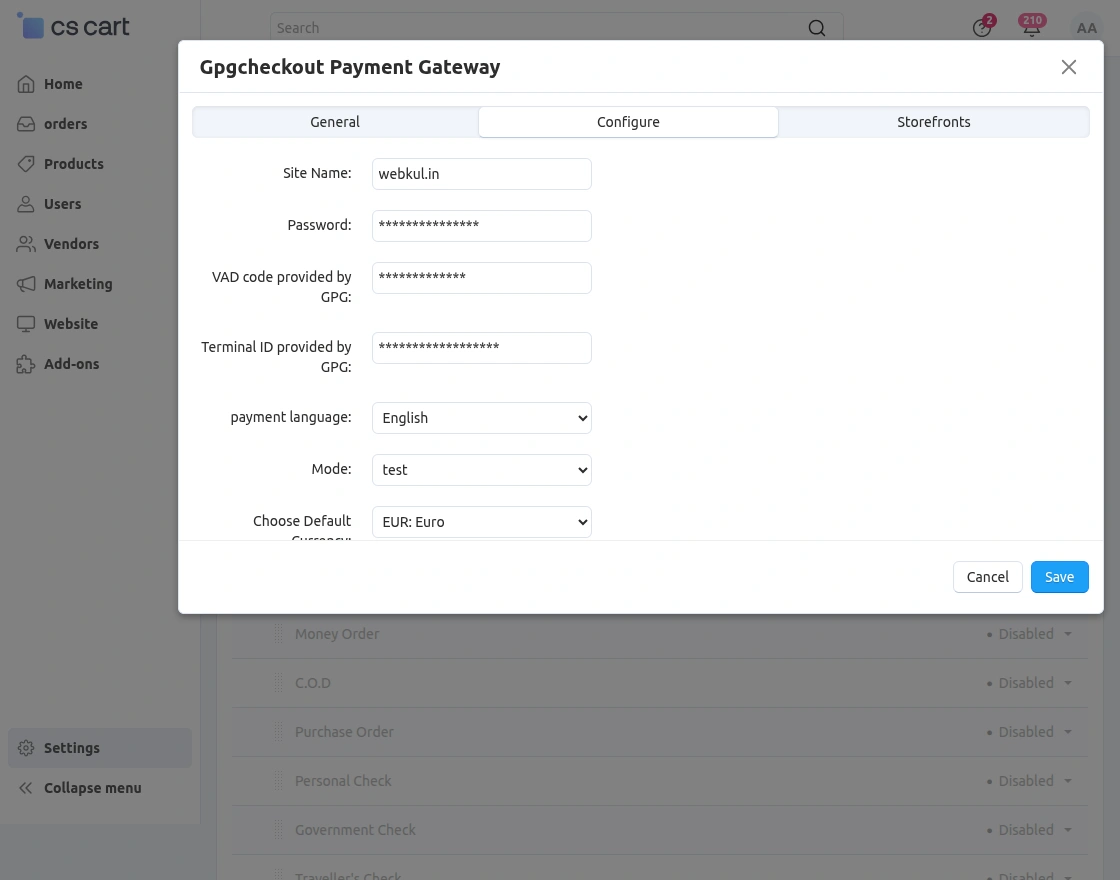

    Click on “Configure” and set the parameters as shown below in the snapshot.

    • Enter credentials for GPGCheckout Payment Gateway.
    • Select the default language for payment method.
    • Select the Test/ Live mode of payment.
    • Choose default currency for payment.
    • Set the default order status.
    • Click on create button to create the payment method.

    configure

    Front End View

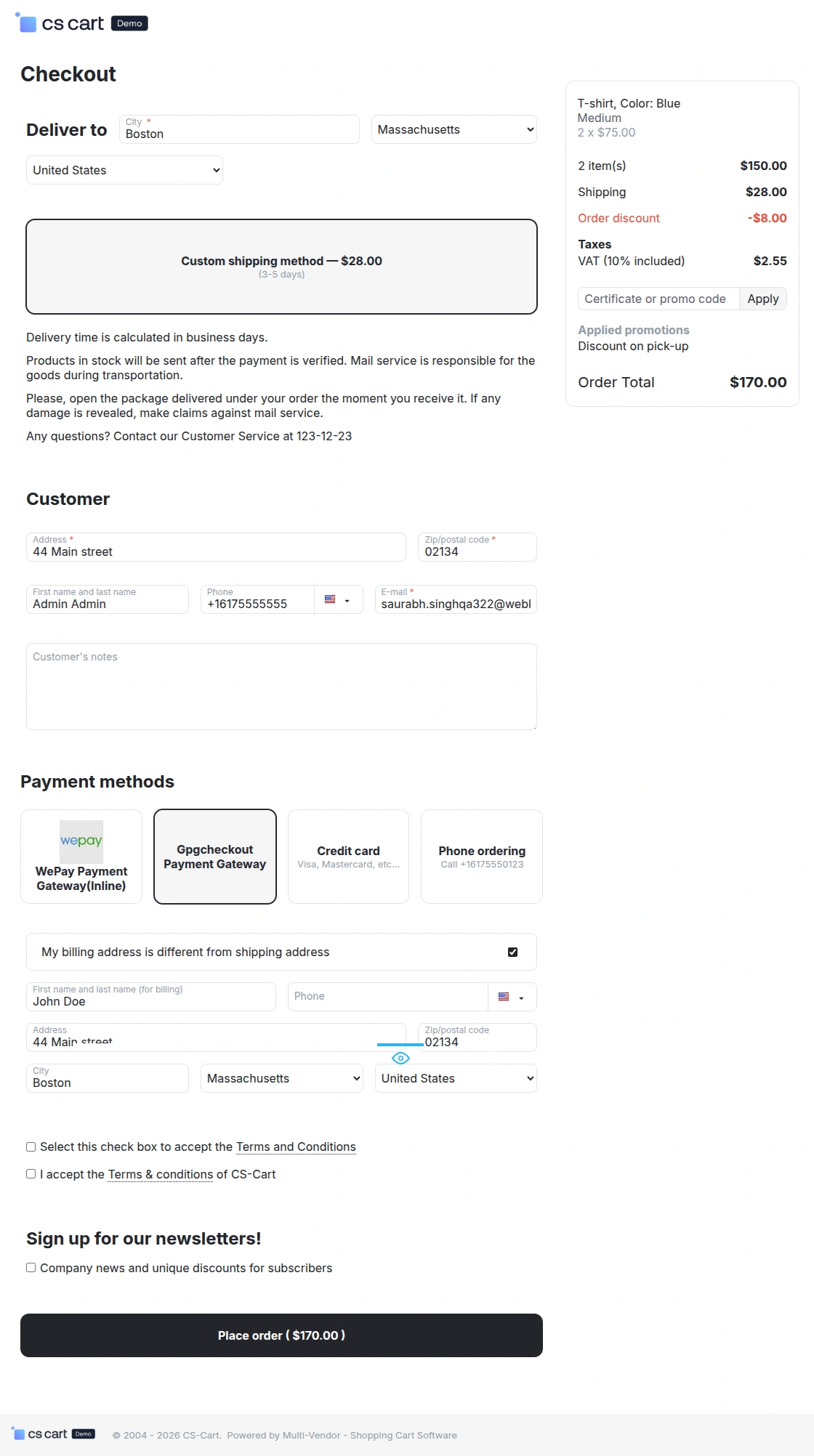

    Now option for payment via GPGChechout is available for customers at front end. For payment customer need to select the option and submit order as shown below in the snapshot.

    frontend
    Now the customer will get redirected to GPG site for payment as shown below.

    gpg

    Once the customer clicks on Pay button, he will get the form for payment. Where the card details need to be filled.

    pay2

    On successful payment this will be the view at GPG end. Click to print the receipt & click on return button to continue.

    pay3

    On clicking the return button customer will get the successful payment notification message as shown below.

    customer

    And finally on clicking Continue button provided, customer will get redirected to CS-Cart store

    cs-cart

    Support

    This is all about CS-Cart GPGCheckout Payment Gateway. Still have any issue, feel free to contact us at http://webkul.uvdesk.com and let us know your views to make the module better.

    Current Product Version - 1.0

    Supported Framework Version - 4.7.x, 4.8.x, 4.9.x

    . . .
