    WooComerce POS Stripe Card Swipe Add-on

    Updated 17 April 2024

    WooCommerce POS Stripe card swipe add-on offers the functionality to integrate the Stripe card swipe machine into the POS.

    The extension allows POS sales merchants to make payments by connecting the Stripe payment gateway to the card swipe machine.

    The POS agents can make payments and generate the invoice after making the payment.

    Note:

    1. This plugin is an add-on to WooCommerce POS System. So you need to download the WooCommerce Point of Sale System first.
    1. To connect the Stripe card swipe terminal (Machine) with the POS Outlet, you need to have a Stripe Reader S700 and BBPOS WisePOS E type of card reader. You may check Strip Card Swipe terminals.
    2. Stripe terminal supports specific countries and currencies, you may check stripe terminal country & currencies.

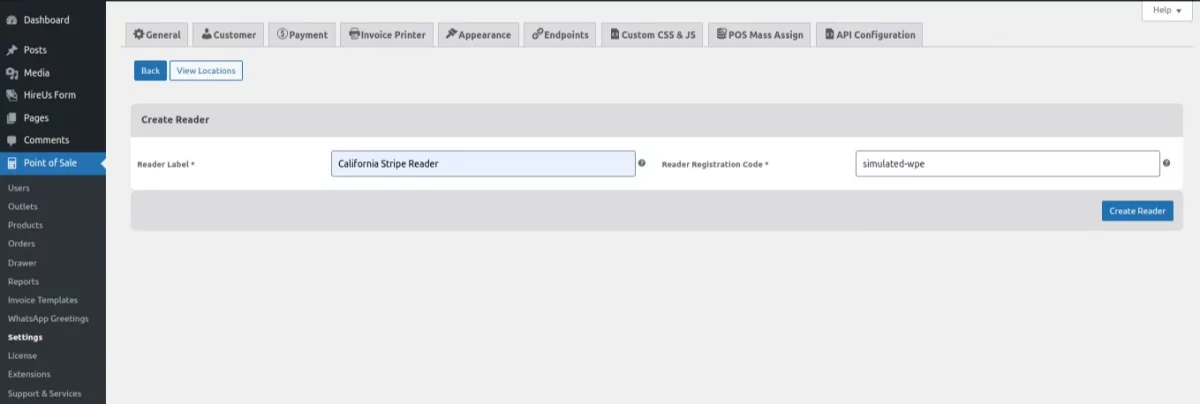

    3. How to add stripe terminal devices you can check the reference here.

    Check a brief overview of the plugin –

    Start your headless eCommerce
    now.
    Find out More
    4zwl493EOIA

    enBVAUMhDQw

    Features

    • The store admin can make a stripe intent payment via POS.
    • The POS agents can make a default payment gateway as a stripe.
    • The POS sales agent can store tests as well as live keys.
    • They can allow simulators for test payments via Stripe.
    • Support for almost all kinds of cards including Visa, Mastercard, American Express & Discover.
    • Auto connects stripe reader.
    • Multiple stripe reader connection.

    Installation

    The user will get a zip file that needs to be uploaded in the “Add New” menu option in the WordPress admin panel.

    installation -1

    So, for this login to WordPress Admin Panel and in the Dashboard hover your mouse over the “Plugins” menu option and select the “Add New” option.

    After this, the user will see an option on the top of the page that is “Upload Plugin”, click the option to upload the zip file.

    installation -2

    On clicking the “Upload Plugin” option, the user will see a “Choose File” button. Thus, click on the button to browse for the zip file as per the image below.

    installation -3
    installation -4

    After browsing the file, click on the “Install Now” button so as to install the plugin as per the snapshot.

    Once the user installs the plugin, a message “Plugin installed successfully” displays and an “Activate Plugin” is visible to activate the plugin.

    So, the user needs to click on the “Activate Plugin” button to activate the plugin.

    installation -5

    WordPress WooCommerce Marketplace Stripe Connect

    First Step: Go to https://dashboard.stripe.com/login and enter your login details.

    Stripe-Sign-in

    Second Step: Now on the Home tab, the test keys will display.

    WC-stripe-new

    Third Step: Click the Developers option present in the top right corner then the API Keys menu option on the side panel to see the live Publishable key(API Publishable Key).

    WC-Stripe-3

    Now, click the “Reveal test key token” to get your Secret Key(API Key). Clicking the “Reveal test key token” will bring up the – Secret Key(API Key).

    Admin Configuration

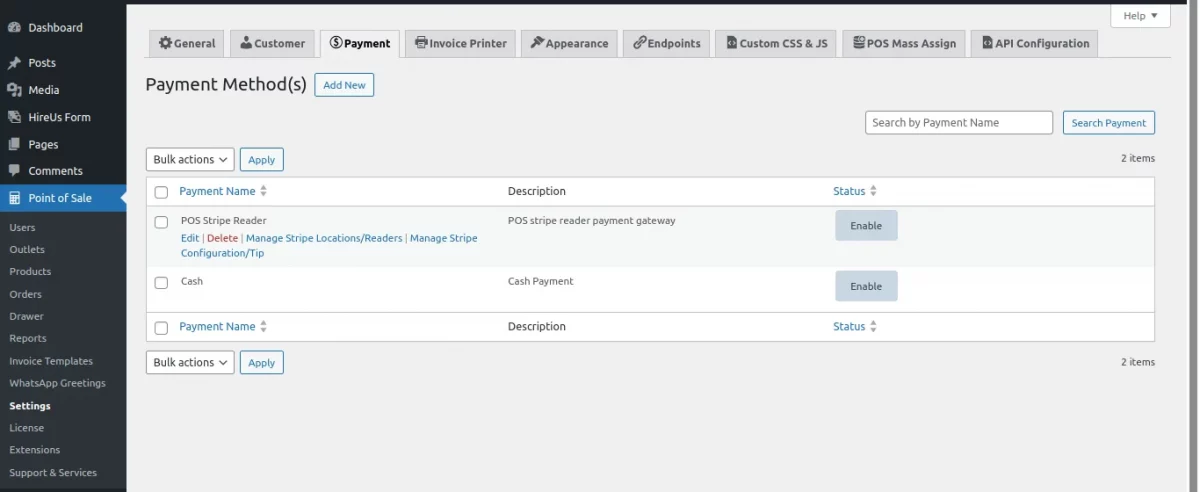

    After successful installation of Stripe Connect the admin can configure this under WooCommerce > Settings > Payments>POS Stripe Reader Gateway.

    Screenshot-17-2

    Now, the admin will enable the plugin to configure it. Here, the store admin will make the following configurations:

    WooCommerce-settings-‹-Woocommerce-POS-Stripe-Reader-—-WordPress

    Enable/Disable – Here admin needs to click on the checkbox to enable the module.

    Default Gateway- Select the Default Gateway option if you want to make it the default payment gateway to make POS payments.

    Title- Enter the title for the payment gateway.

    Description- The admin can add the description which will display to the user during checkout.

    Use Simulator- When the device is not available, enable the simulator for testing payment via the terminal.

    Card Number- Enter the card number to test.

    Test Mode- The store admin will be able to test when he will select the Test Mode option

    Stripe Test Publishable Key- Enter the publishable key to test.

    Test Private Key- Enter the private key to test.

    Live Publishable Key- Here, the store admin will enter the live publishable key when the device is integrated with the stripe payment gateway.

    Live Private Key- The store admin will enter the live publishable key when the device is integrated with the stripe payment gateway.

    Customer View

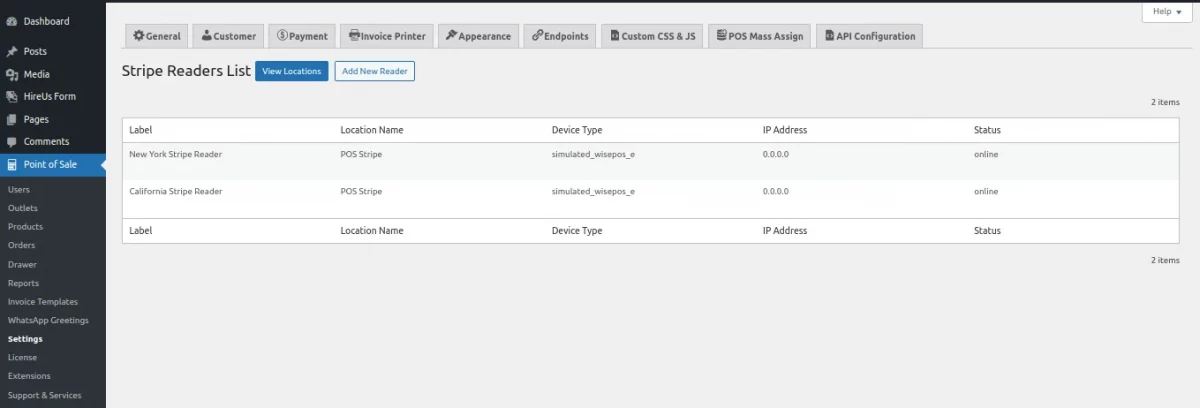

    The customer can connect multiple card swipe machines and can see the listing and the status of all the devices.

    Woocommerce-POS-Stripe-Reader-2

    Now, the POS agent will add the products to the cart and proceed to checkout he has to select the POS Stripe Reader option as shown

    If you require expert assistance or want to develop custom unique functionality, hire WooCommerce Developers for your project.

    wpdemo.webkul.com_woocommerce-pos-stripe-connector-reader-115-113-191-18_pos_pay

    Now, the POS agent will enter the amount and click on the Confirm Payment and Generate Invoice button to make payment.

    Screenshot-from-2022-10-21-10-11-06

    Thus, the payment is made and the order receipt will get generated as shown below.

    Screenshot-from-2022-10-21-10-14-28

    Support

    For any technical assistance kindly raise a ticket or reach us by email at [email protected]. Thanks for Your Time! Have a Good Day!

    Also, discover various solutions to add more features and enhance your online store by visiting the WooCommerce plugins.

    Current Product Version - 2.0.0

    Supported Framework Version - WordPress: 6.3.0 WooCommerce: 7.9.0 WooCommerce POS: 4.1.0

    Blog Version - WordPress: 6.3.0 WooCommerce: 7.9.0 WooCommerce POS: 4.1.0
    • Version WordPress: 6.3.0 WooCommerce: 7.9.0 WooCommerce POS: 4.1.0
    • Version WordPress: 6.0.3 WooCommerce: 7.0.0 WooCommerce POS: 4.1.0
    • Version WordPress: 5.9.3, Woocommerce: 6.3.1,
    • Version WooCommerce POS: 4.1.0, WordPress: 6.0.2, WooCommerce: 6.9.4
    . . .
