    Custom XLSX Connector for Akeneo

    Introduction

    Custom Xlsx Connector for Akeneo With this connector, you can extract your product and product model data into a customized Xlsx file and use it for uploading product information to third-party platforms, suppliers, or other applications. The extension enables you to map Akeneo fields with the Xlsx fields (columns) for creating Xlsx files.

    Basic Requirements:

    • This module works with Akeneo 3.0.x, 3.1.x, 3.2.x 4.0.x and 5.0.x. Download Akeneo from here
    • Node and Yarn packages need to be installed.
    • This module is compatible with the Akeneo community and Enterprise(Flexibility) edition.
    • If you want to use this extension on Akeneo EE Serenity mode, please contact us.
    • For the Akeneo installation, your Akeneo server should meet these system requirements.

    Features

    • Export/Import products from Akeneo into Xlsx file
    • Product export variations from Akeneo into Xlsx file
    • Export multiple images of a product from Akeneo to Xlsx is a link
    • Use a fixed value for some fields when exporting data.
    • Mapping of Akeneo fields withXlsx field code
    • Create multiple stores
    • Create dynamic custom fields for every store
    • Select types that the custom field support at the time of creating
    • Support option to the export category, attribute, and select type attribute option label
    • Export category and family with a product
    • Export Xlsx products using quick export.
    • Variant product mapping is also available
    • This module is compatible with the latest Akeneo version 5.0.x
    • Filter Data to be exported based on Category, Family, Completeness, Time conditions, Identifier (SKU), Language, and Currency.

    Installing Module for Version 4.0.x to 5.0.x

    Please follow these steps for installing the Custom Xlsx Connector for the Akeneo module in your Akeneo PIM platform.

    1 – Unzip the respective extension zip then merge the “src” folder into the Akeneo project root directory.

    csv-src-1

    2 – Goto config/Bundles.php then add line:

    Webkul\WebkulCustomXlsxBundle\WebkulCustomXlsxBundle::class => ['all' => true],

    in the return array.

    3 – Copy the “config” folder into the akeneo project root directory for routing.

    csv-conf-1


    – Run this command after ssh to your akeneo server by the terminal

    rm -rf var/cache/ && php bin/console customxlsx:setup:install

    5 – If you are using php-fpm. Then you need to restart the php-fpm services and apache web server.

    For Akeneo 5

    sudo service php-fpm7.4 restart

    For Akeneo 4

    sudo service php-fpm7.3 restart

    To run the Quick export in Akeneo 5.0.x, you need to run the below command.

    Install composer dependency

    php -d memory_limit=4G /usr/local/bin/composer --prefer-dist --no-scripts require navneetbhardwaj/akeneo-quickexport-configurator;

    After that, register bundle in config/bundles.php

    return [
       WebkulQuickExportConfiguratorBundle\QuickExportConfiguratorBundle::class => ['all' => true],
    ];

    Define routing to create a file in the config/routes/wk_quick_export.yml

    wk_quick_expoort:
       resource: "@QuickExportConfiguratorBundle/Resources/config/routing.yml"
       prefix: /

    Docker Installation Command :

    For Akeneo 5

    alias docker_php='docker-compose run -u www-data --rm php php';
    alias docker_yarn='docker-compose run -u node --rm node yarn';
    docker_php bin/console cache:clear --env=prod;
    docker_php bin/console pim:installer:assets --symlink --clean --env=prod;
    docker_php bin/console d:s:u --force;
    docker_yarn run webpack;
    docker_yarn run update-extensions;
    docker_yarn run less;

    For Akeneo 4

    alias docker_php='docker-compose run -u www-data --rm php php';
    alias docker_yarn='docker-compose run -u node --rm node yarn';
    docker_php bin/console cache:clear --env=prod;
    docker_php bin/console pim:installer:assets --symlink --clean --env=prod;
    docker_php bin/console d:s:u --force;
    docker_yarn run webpack;
    docker_yarn run less;

    Installing Module for Version 2.x to 3.x

    Please follow these steps for installing the Custom XLSX Connector for Akeneo module in your Akeneo PIM platform.

    1 – Unzip the respective extension zip then merge the “src” folder into the Akeneo project root directory.

    2 – Goto app/AppKernel.php then add the line

    new Webkul\WebkulCustomXlsxBundle\WebkulCustomXlsxBundle(),


    3 – Goto app/config/routing.yml then add these lines at top of the file

    webkul_xlsx:
        resource: "@WebkulCustomXlsxBundle/Resources/config/routing.yml"
        prefix:    /


    4 -You have to navigate to Akeneo Installation Directory(Ex. cd /opt/bitnami/apps/akeneo/htdocs ). Run this command after ssh to your akeneo server by the terminal.

    rm -rf var/cache/ && php bin/console customxlsx:setup:install

    5 – You have to restart your web server like Apache, Nginx. Run the command for the Apache webserver.

    sudo service php-fpm7.2 restart


    Common Issues After Installation

    It might happen that even after proper installation, upon opening your Akeneo admin dashboard, you see a loading screen. In that case, do check for the following solution:

    • Webpack Installation: If you get the below error
    Webpack-error

    It means that web pack is not installed in your system. Run the following command

    npm install --save-prod webpack
    npm install


    • Module routing.yml is not configured properly. Re-check the routing.yml file as mentioned in the 3rd step of Module Installation
    • Clear your browser cache.

    Workflow – Custom XLSX

    Akeneo Xlsx Mapping

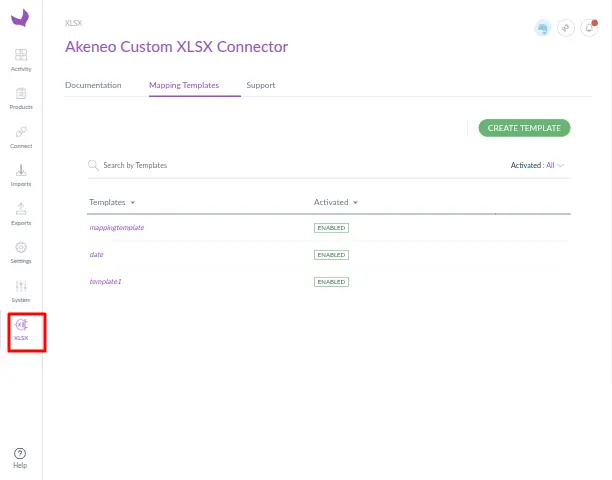

    After installing the connector in Akeneo, You can see the Webkul Custom Xlsx Connector connector icon at the Akeneo dashboard.

    Akeneo-Custom-Csv-Export-1

    XLSX Connector Product Mapping Fields

    You can click on the Webkul Xlsx connector icon to set up an Xlsx connector. In this, you can create map multiple templates.

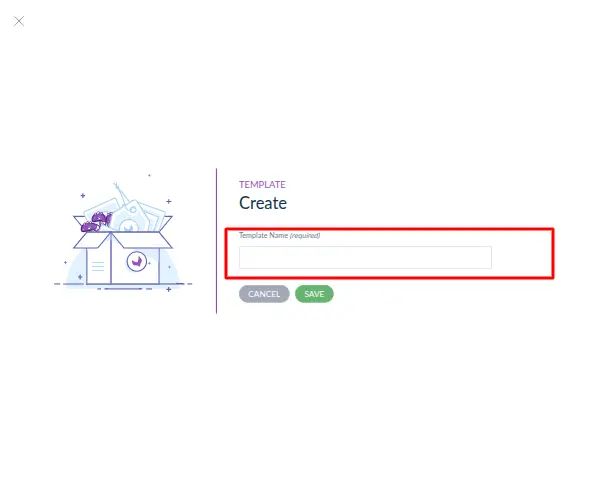

    To create a new template click on create the template.

    Akeneo-Custom-Csv-Export-2

    After that, it will redirect you to the new page in which you have to enter the name of the template.

    Akeneo-Custom-Csv-Export-3

    Then click on to Save button.

    Now to map the attributes in that template click on the template.

    Export Mapping

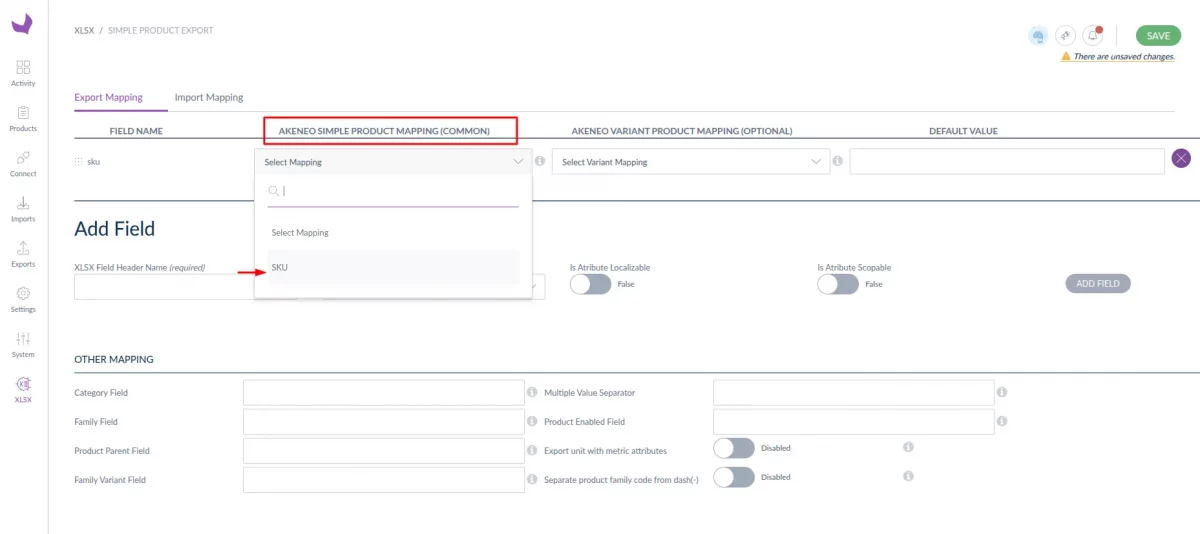

    After that, you can see the other fields like Akeneo fields. With these fields, you can do the correct mapping of the product attributes for your Akeneo and eCommerce products fields.

    Webkul-CSV-Connector-Edit-Template

    Akeneo Fields –

    In the Akeneo fields, you can map the Akeneo attributes fields with the eCommerce store Xlsx fields that you want to export. You can select the attributes in the dropdown as you have created and want to map.

    Webkul-CSV-Connector-Edit-Template-2

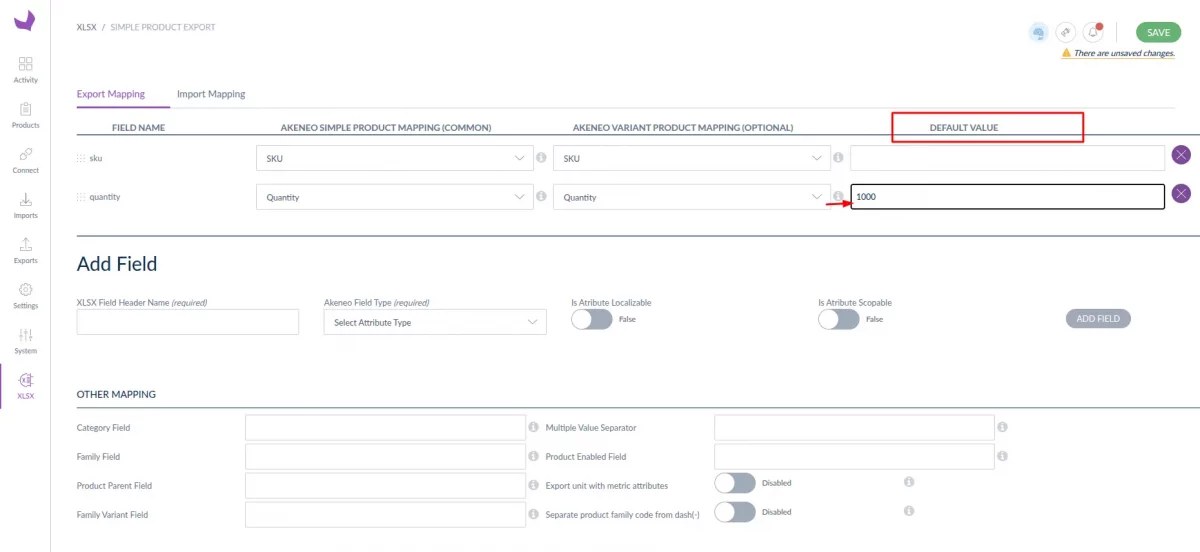

    Default Value –

    In the default value fields, you can fix the default value of the attributes. Example: If you have a product quantity attribute then you can fix the size of the quantity.

    Webkul-CSV-Connector-Edit-Template-3

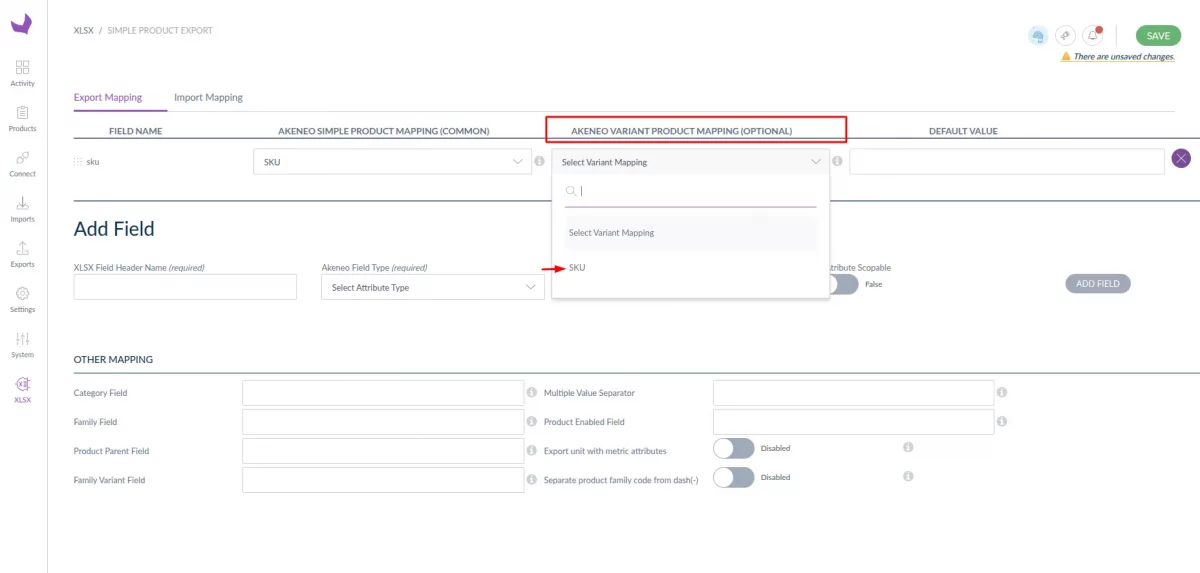

    Variant Product Mapping –

    In this mapping, you can export the variant product information along with the parent product information.

    Example: If you have a variant product with a variant like color – Red, White. Then, you can send the product information like the price for the variant product.

    Webkul-CSV-Connector-Edit-Template-4

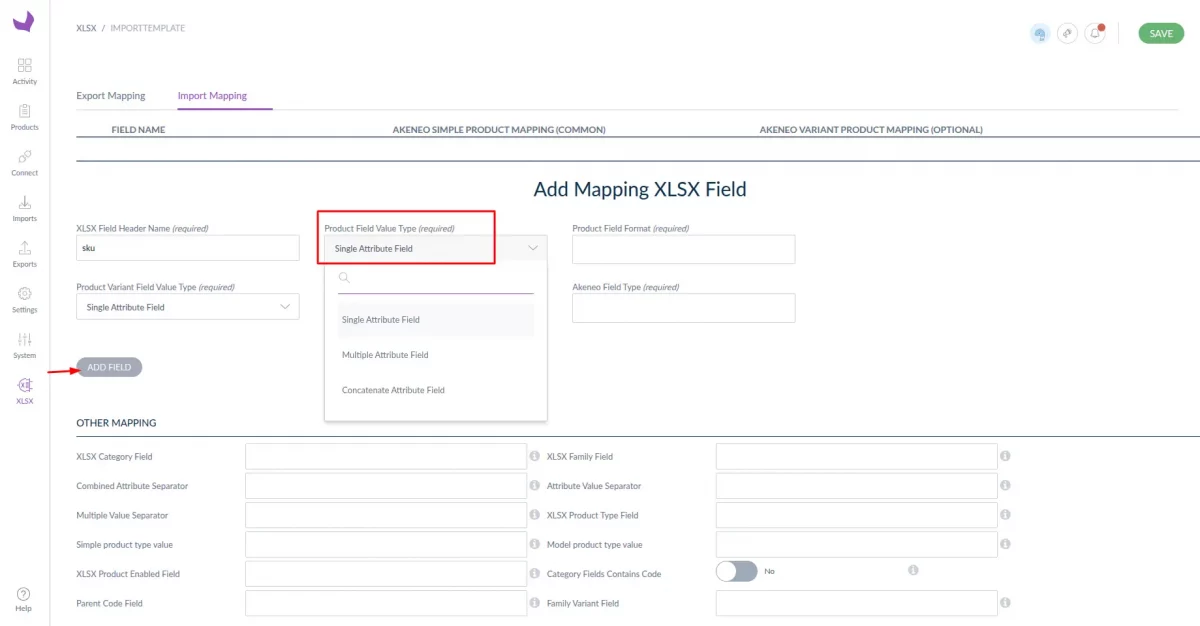

    Add Mapping Xlsx Fields

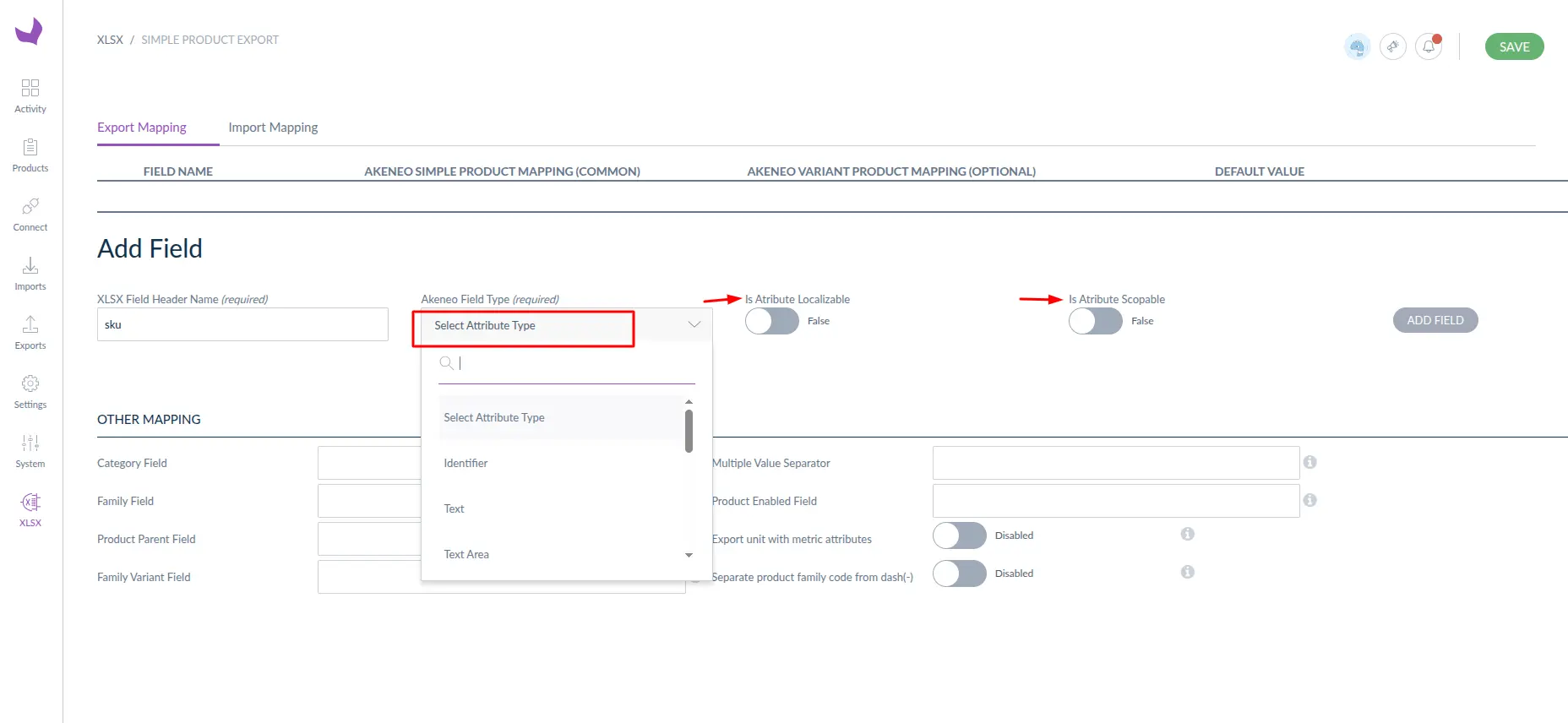

    If you want to map the more Xlsx fields with the Akeneo fields, you can create a new mapping with the Map more fields option.

    In the variant export mapping fields, you can mention the attribute for the variant product name. For example, You have a variant name “color” and value “Red” then you can mention the variant code and value in the Variant Export Mapping fields name.

    Webkul-CSV-Connector-Edit-Template-5

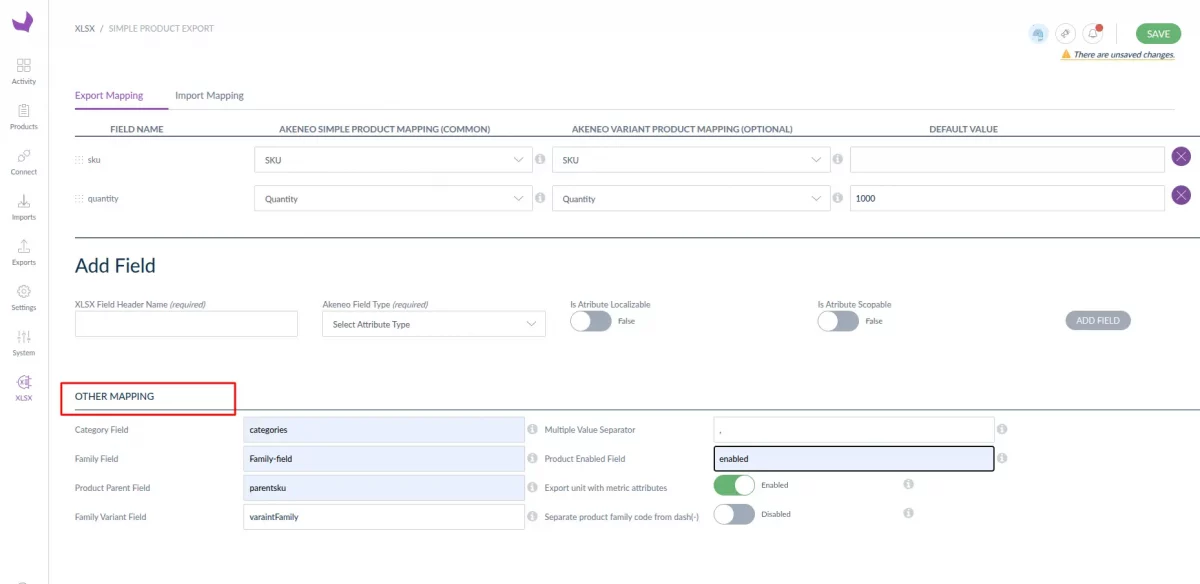

    Other Mapping:

    • Xlsx Category Field –  In this you can save the Akeneo product categories.
    • Multiple Value Separator – You can add multiple value separator ex- (,) food, clothes, accessories.
    • Seperate product family code from dash(-) – If you want to separate attribute name and attribute value with a separator like (/)
    • Xlsx Family Field – In this you can add Akeneo product family.
    • Xlsx Product Parent Field – You can save the Akeneo product parent field in this which you wany to export.
    • Export unit with metric attributes – In this you can export metric attribute.
    • Xlsx Family Variant Field – You can save the Akeneofamily variant field in this which you wany to export.
    • Xlsx Product Enabled Field – If you want to export only Akeneo enabled product the you can select.
    Webkul-CSV-Connector-Edit-Template-9

    Import Mapping

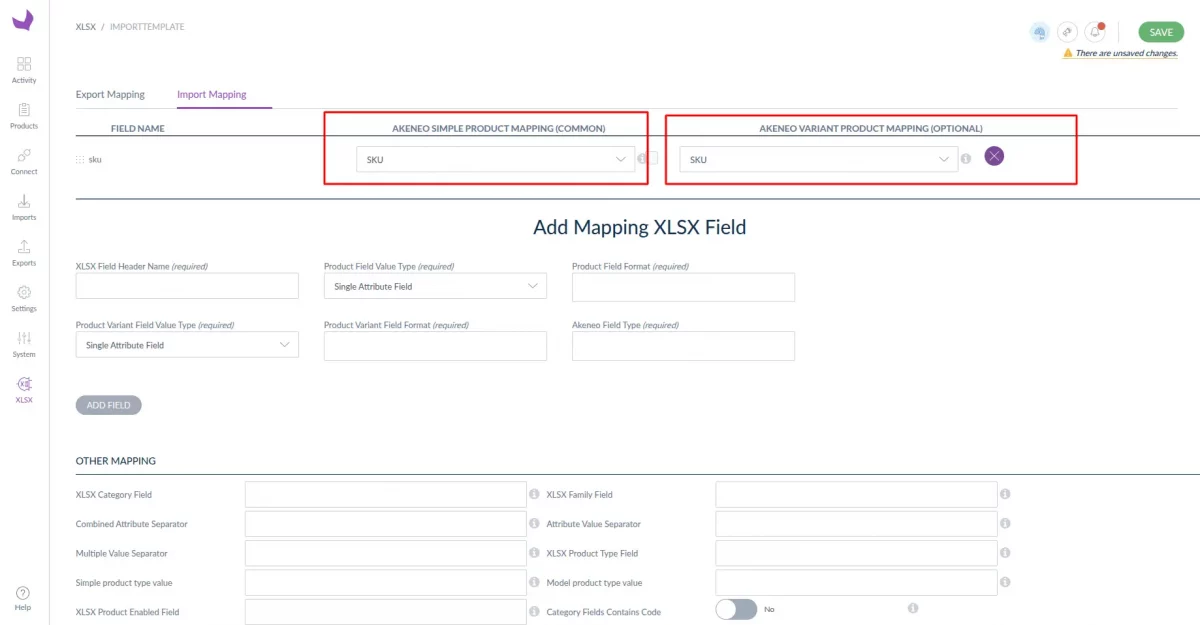

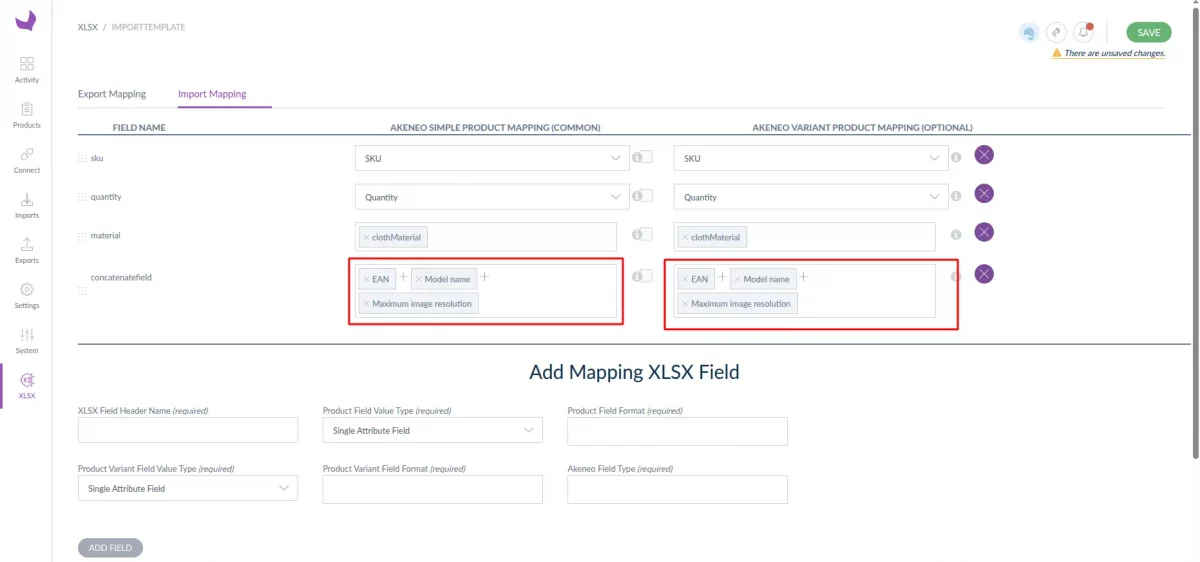

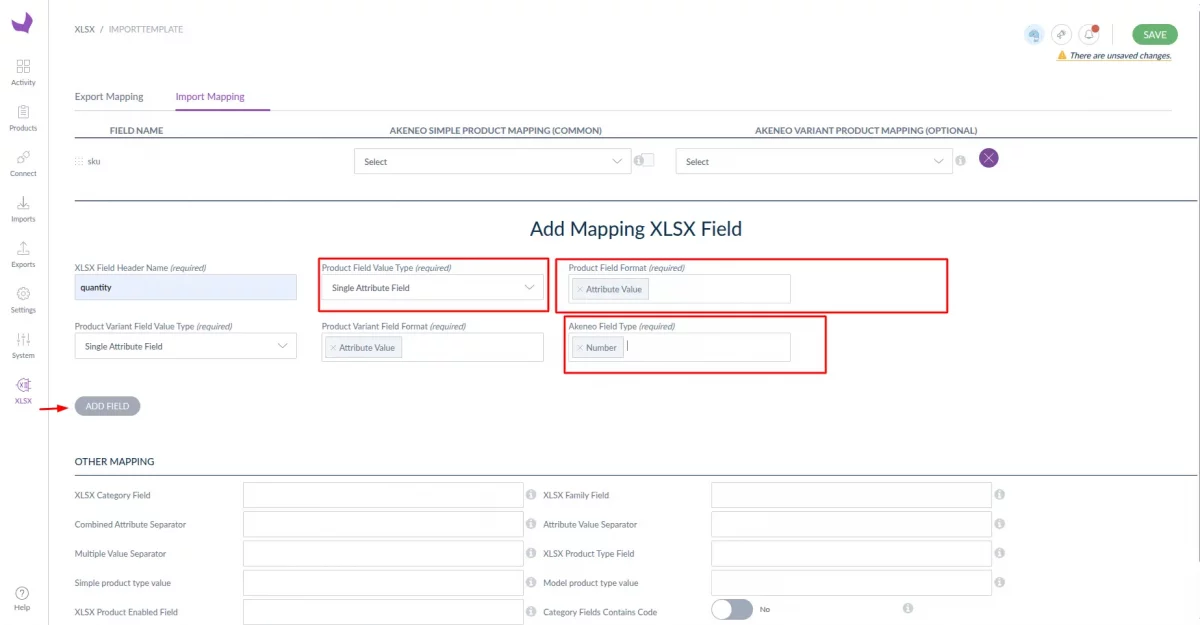

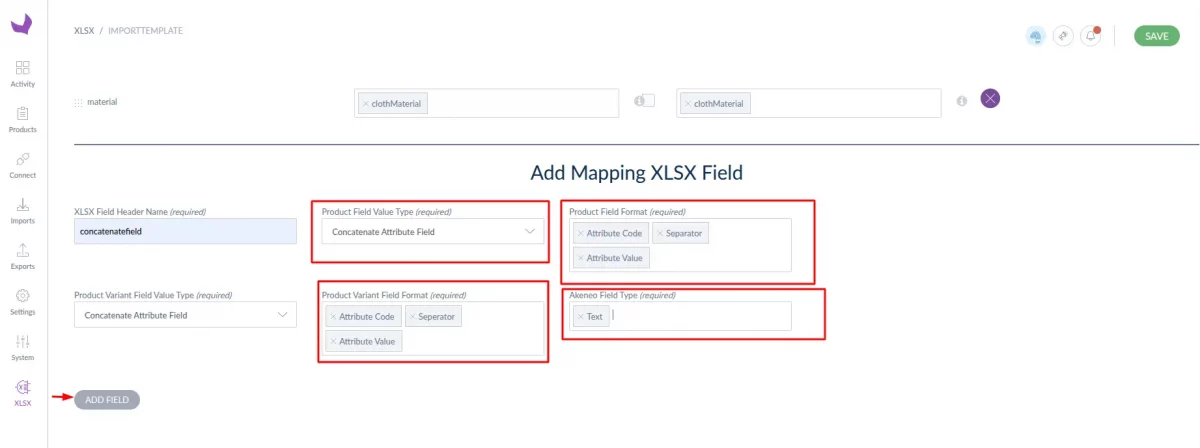

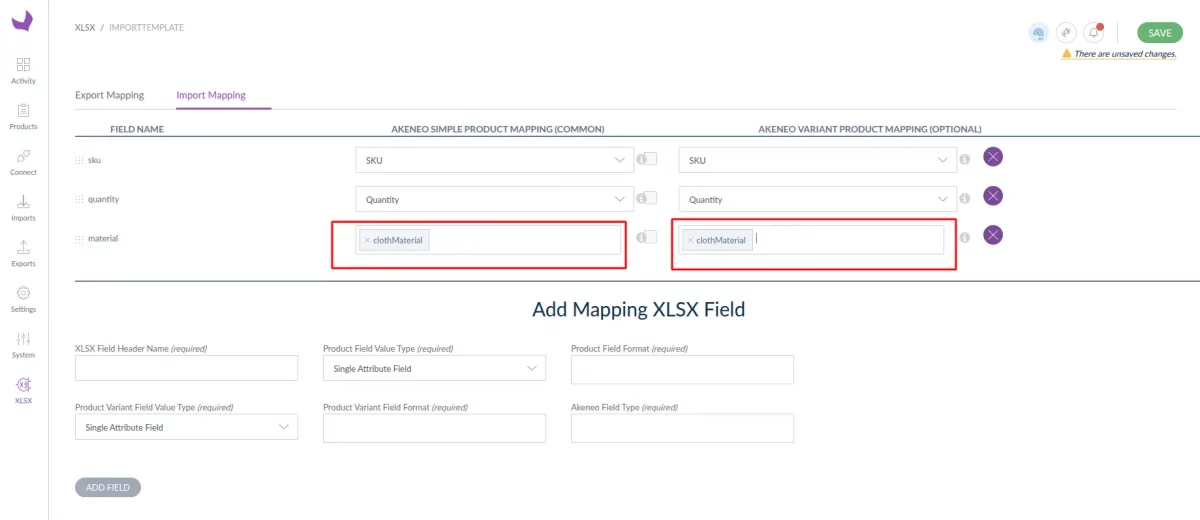

    After that, map the attributes which you want to import in Akeneo. With these fields, you can do the correct mapping of the product attributes to your Akeneo and eCommerce products fields.

    Webkul-CSV-Connector-Edit-Template-7

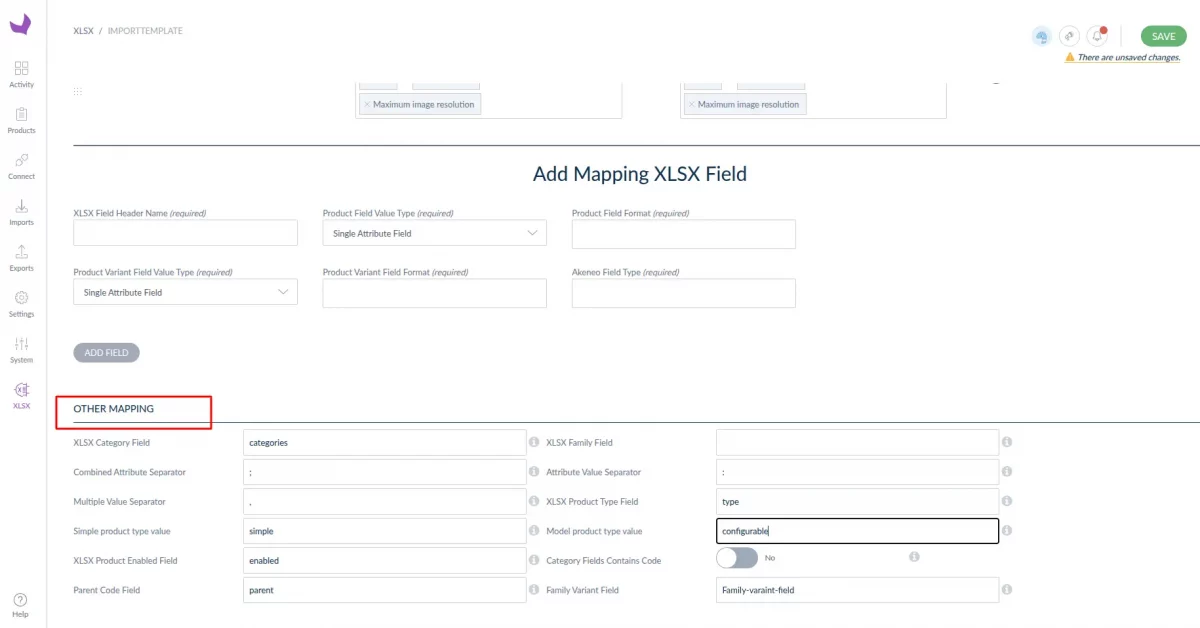

    Other Mapping:

    • Xlsx Category Field –  In this you can save the Akeneo product categories.
    • Family Field – In this you can add Akeneo product family.
    • Xlsx Product Parent Field – You can save the Akeneo product parent field in this which you wany to export.
    • Multiple Value Separator – You can add multiple value separator ex- (,) food, clothes, accessories.
    • Xlsx Family Variant Field – You can save the Akeneofamily variant field in this which you wany to export.
    • Xlsx Product Enabled Field – If you want to export only Akeneo enabled product the you can select.
    Webkul-CSV-Connector-Edit-Template-9-1

    Create Product

    For creating the product in Akeneo, you can follow our user guide. Create Product and Product Variant in Akeneo

    To create a product in Akeneo, go to navigate to Products then click the Create button. Now, you need to choose the product type – Product or Product Model.

    Product – Select this type for creating simple and virtual products.

    Product Model – Select this type for creating a configurable product with variation

    Products-4

    Now to enter the required SKU, choose a family, then click the Save button.

    SKU– Fill in the product’s unique code.

    Product Family – A family is a set of attributes that will be the same for all products belonging to a family. The product family represents product type, imposes product information structure, and defines the list of attributes for a product that it belongs to.

    Products-5

    Add Product Details

    Now you need to provide information about the product. First, select the Channel and Locale then enter the price, name, and description.

    Product-Luma-Analog-Watch-Edit

    Export Profile

    Now to export your product data you need to create a job profile then execute it.

    First, go to Exports>Create Export Profile after that enter a unique code, the label then select a job profile.

    Export-profiles-management

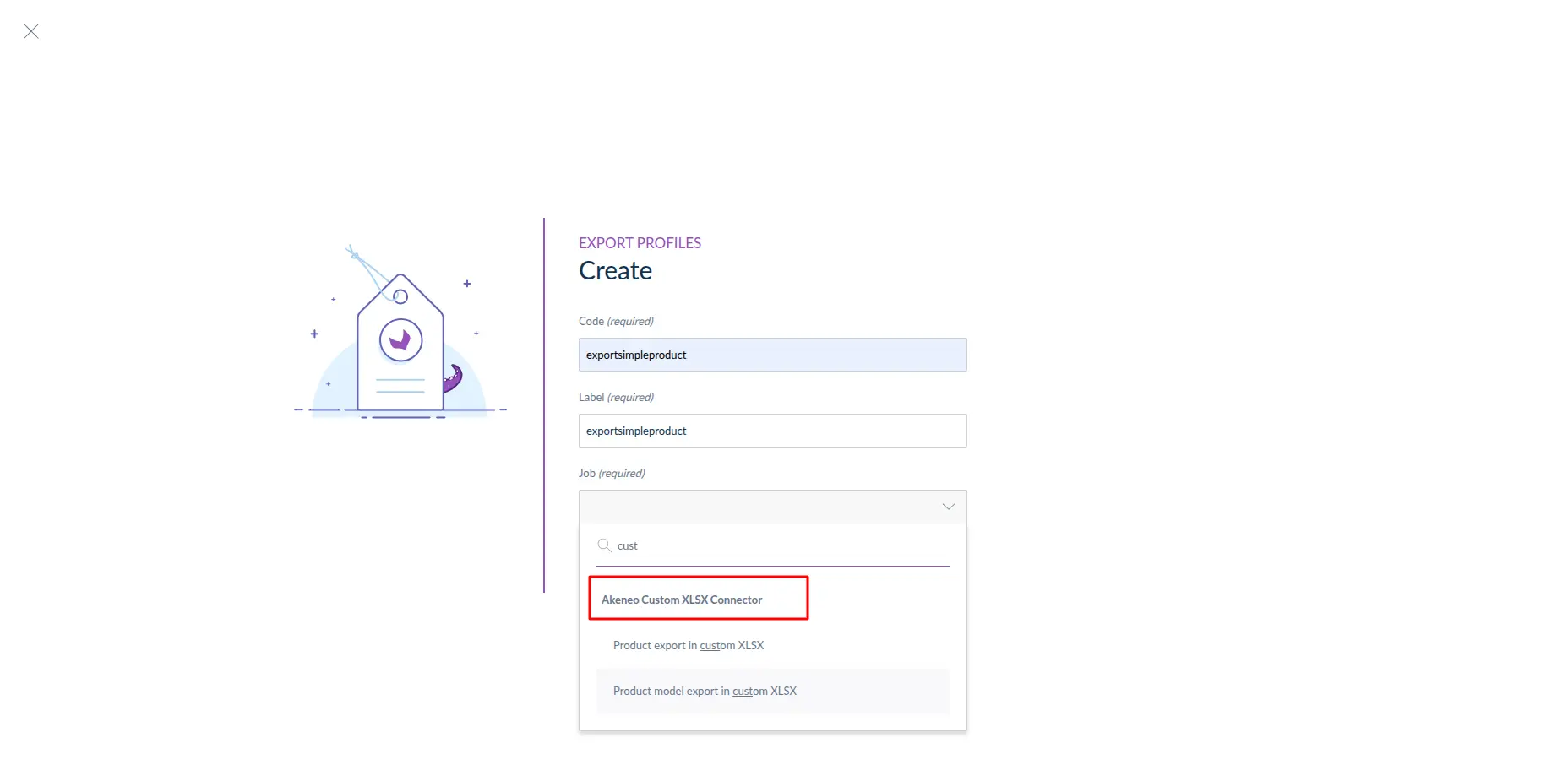

    After that, you have to select the Job profile. For creating an export profile, you have to click on the Save button.

    Export-profiles-management-1

    After clicking on the save button, you can see the export profile.

    Global Settings:

    In this, you have to fill in the details given below in the image like file path, decimal separator, data formate, etc.

    Export-profile-Xlsx-Product-Edit

    Setup Store Template:

    In this, you can select the template, and after that click the Save button and follow the next step to execute this profile.

    Export-profile-Xlsx-Product-Edit-2

    Now go to the Content section then select the following options:

    Channel – Each export job can only be linked to one channel, please select the relevant channel of products to export.

    Locales – Select one or more Locales depending on your requirements.

    Currency – You have to select here one currency.

    Attributes – You can select which product attributes you want to export all or a few of them. Click the Edit button to select the attributes.

    Export-profile-Xlsx-Product-Edit-1

    Edit Attributes

    To make your own attribute selection, click on the left side to select a specific attribute group (or All groups to display all attributes). The selected attributes will be displayed as columns in your export file.

    Export-profile-Xlsx-Product-Edit-3

    Filter The Products

    Filter the product in Akeneo

    Now you need to decide which products to export an Xlsx file.

    Family

    After that one or more product families to export in the Xlsx file. If you want to export products belonging to specific families, click on the drop-down list then click on the families to add in the field like clothing, shoes, t-shirts.

    Filter with family

    Status

    You can also filter on the status of your products, three options available:

    Filter with status
    • All – to export all products whatever their status is
    • Enabled (default option) – only to export enabled products
    • Disabled – to only export enabled products

    Completeness

    Filter with completeness

    This enables you to filter on the completeness of selected locales. Four options on completeness are proposed:

    • No condition on completeness – all products will be exported whatever their completeness is.
    • Complete on at least one selected locale (default option) – products must be complete on at least one locale
    • Not complete on all selected locales – In these products must not be complete on all locales (if you have selected more than one locale).
    • Complete on all selected locales – products must be complete on all locales (if you have selected more than one locale).

    Time Condition

    You can now export your product on a specific time condition.

    Filter with time condition
    • Updated products over the last n days (e.g. 6) – To filter the products that were updated during the last six days, enter 6 value.
    • No date condition (default option) – Products are not filtered using time conditions.
    • Updated products since this date – To filter the products that were updated during a specific date, select a date.
    • Updated products since last export – It will export the product updated since the last export.

    Category

    You can configure the categories of the channel tree you want to export. For example, you want to export the clothing products to update.

    Category

    By default, all categories are exported. To select a category, click n the Edit button the categories of the channel tree are displayed.

    Export-profile-Xlsx-Product-Edit-4

    Identifier

    Identifier

    You can make a selection of identifiers to export by adding them to the SKU field. You can copy and paste a list of identifiers, separated them by using comma, space, or line breaks.

    Product Export

    After creating and filtering data in the Export profile, you can see the Export Now button in Akeneo.

    Export-profile-Xlsx-Product-Show

    Now after clicking on the Save button, Wait for the execution process to complete and check the errors. After the completion of the export job, the products will appear in the Xlsx file.

    Export-executions-Details-1

    Import Xlsx Product

    Now to export your product data you need to create a job profile then execute it.

    First, go to Imports>Create Import profile.

    Import-profiles-management

    After that enter a unique code, the label then select the Job profile. For creating an import profile, you have to click on the Save button.

    Import-profiles-management-1

    After clicking on the save button, you can see the import profile.

    Global Settings:

    In this, you have to fill in the details given below in the image like file path, decimal separator, and data formate.

    Import-profile-Import-Xlsx-Edit

    Setup Store Template:

    In this, you can select the template, and after that click the Save button and follow the next step to execute this profile.

    Import-profile-Import-Xlsx-Edit-1

    Product Import

    After creating and adding data in the Export profile, you can see the Import Now button in Akeneo.

    Add File path for import.

    Import-profile-Import-Xlsx-Show

    As well as you can add upload files for import.

    Import-profile-Import-Xlsx-Show-1

    Now after clicking on the Save button, Wait for the execution process to complete and check the errors. After the completion of the import job, the products will appear in the Akeneo.

    Import-executions-Details

    Support

    That was all about the  Custom Xlsx Connector for Akeneo. Moreover, if you have any doubts or queries regarding the extension get back to us at [email protected] or create a ticket at our HelpDesk system.

    Please explore our Akeneo Development Services and Quality Akeneo Extensions.

    Current Product Version - 1.0.0

    Supported Framework Version - 3.x.x & 4.x.x & 5.x.x

    . . .
    Discuss on Helpdesk

    Leave a Comment

    Your email address will not be published. Required fields are marked*


    Be the first to comment.

    Back to Top

    Table of Content

    Hide Index
