User Guide for CS-Cart Product Custom Field

Updated 14 November 2023

CS-Cart Product Custom Fields are additional fields that can be added to a product in the eCommerce platform. These fields allow store owners to collect and display more detailed information about their products, such as size, color, price, and many more.

Custom fields can create and customized to fit the specific needs of a store, and can use to filter products, sort them in search results, or provide more detailed product descriptions to customers.

Check the video mentioned below for an overview of the extension:

ighTM7jxRes

Features

  • This add-on supports Multi-Vendor/CS-Cart.
  • The admin can easily add, edit, delete, enable, or disable the custom fields.
  • The admin can add as many product custom fields as required and show them on product pages(Frontend and backend).
  • The admin can enter the custom field according to the product description.
  • Create custom fields for products with various types such as text, date, checkbox, phone, and email.
  • The admin can set custom field values for individual products.
  • The customer can view the custom fields on product pages and in the shopping cart.
  • Use custom fields to filter and search for products in the storefront.

How To Upload And Install The Add-on

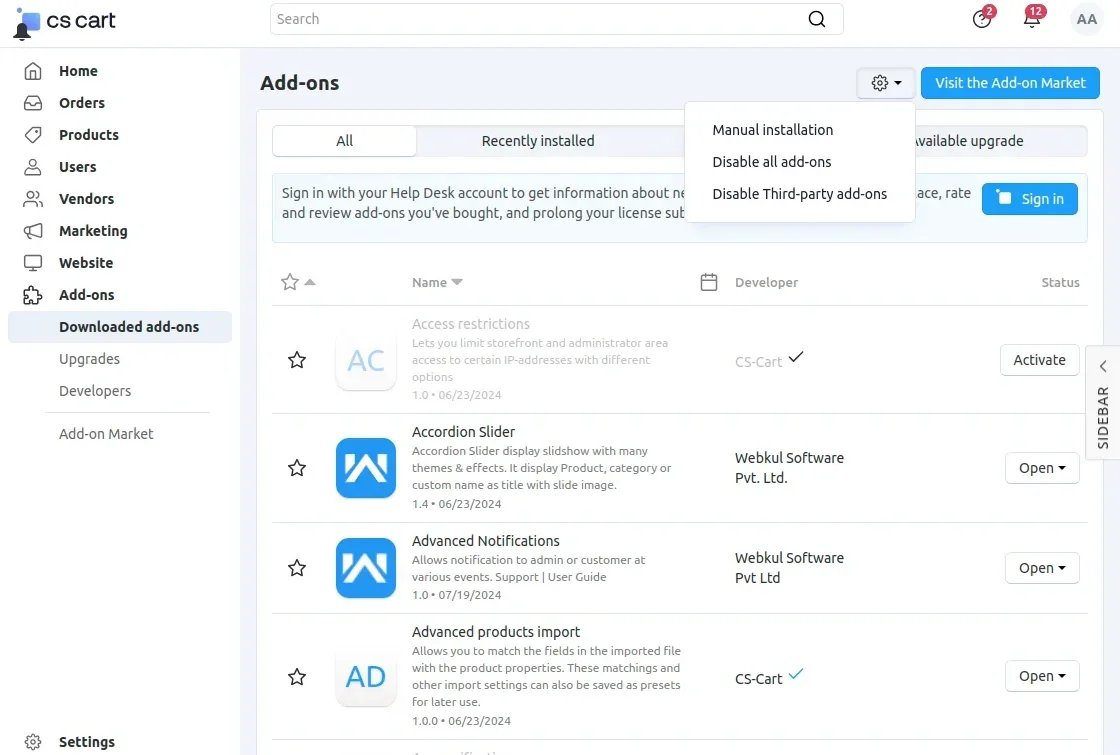

After downloading the Cs-Cart Product Custom Field add-on you’ll get the zip file, one install.txt file, and a relevant User Guide manual doc. Read it carefully for proper configuration. Go to Manage Add-ons, and click on “+” as shown below in the snapshot.

Start your headless eCommerce
now.
Find out More
install

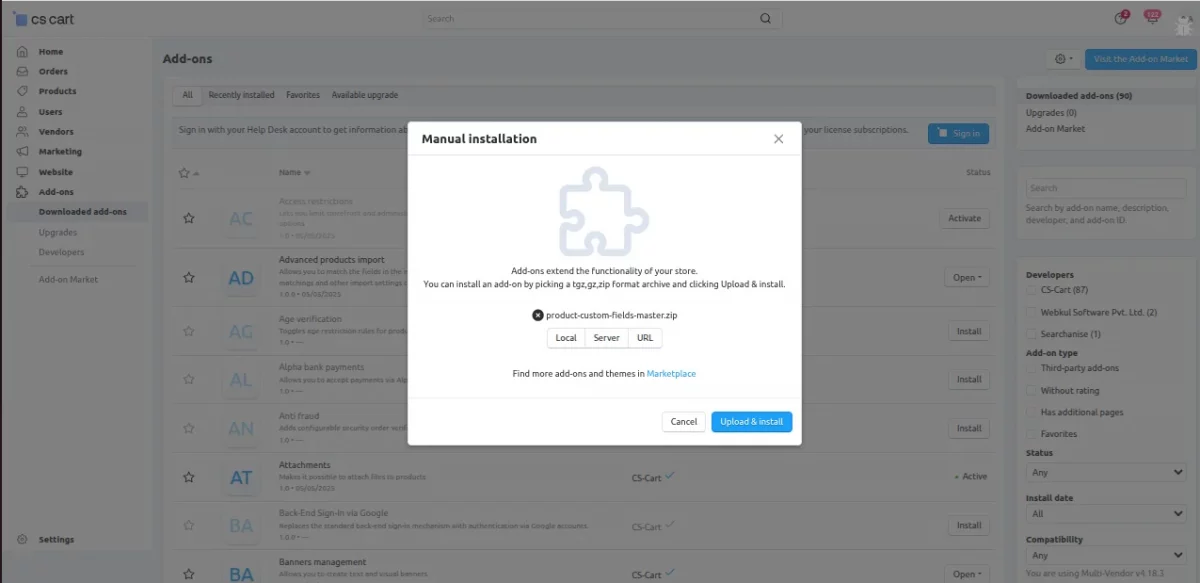

Click on “Local” to browse the zip file and then click on “Upload & Install” as shown below in the snapshot.

CS-Cart AliExpress Dropshipping

Add-on Configuration

After the add-on installation, we need to configure the settings. For that admin needs to click on the Cs-Cart Product Custom Field and then a new tab will open for configuration.

cs-cartdemo.webkul.com_advanced-rma-182-75-44-194-demo_demoadmin.php_dispatchaddons.managesupplierWebkul20Software20Pvt.20Ltd.

Product Custom Fields

In the Add-on configuration, the admin can go to the Product Custom Fields(Administration) where they can Manage the custom field.

cs-cartdemo.webkul.com_advanced-rma-182-75-44-194-demo_demoadmin.php_dispatchaddons.updateaddonwk_product_custom_fields

Add Product Custom Fields

Here the admin can add the product custom field according to the requirement of the product.

Here are some options that use to fill by the admin to add a product custom field:

Name: Admin can set the name of the product.

Code: The admin has to enter a unique code for every product.

Class: The Admin can enter any class name so the product can add to that group.

Type: The admin can select any type of product from the checkbox

Show On FrontEnd: Admin can select the checkbox to show that field on the Frontend or not.

Required: The admin can select the checkbox whether the custom product field requires or not in the Frontend and Backend.

Show On BackEnd: The admin can select the checkbox to show that field on the backend or not.

cs-cartdemo.webkul.com_advanced-rma-182-75-44-194-demo_demoadmin.php_dispatchwk_pcf.add_

Manage Custom Product Field

The admin can manage the custom product field where they can check the Id, Name, Code, Class, Type, Show On BackEnd, Show On FronEnd, Required, Date//Time, Action, and status.

Here admin can manage the given options:

Date/Time: It will automatically set the date/time on which day the custom field will add.

Action: The product custom field can be edited/deleted by the admin.

Status: The status of the field can be active or disabled by the admin.

cs-cartdemo.webkul.com_advanced-rma-115-113-191-18-demo_demoadmin.php_dispatchwk_pcf.manage

After that, the admin can also edit any product custom field and can make changes.

cs-cartdemo.webkul.com_advanced-rma-182-75-44-194-demo_demoadmin.php_dispatchwk_pcf.updateid1

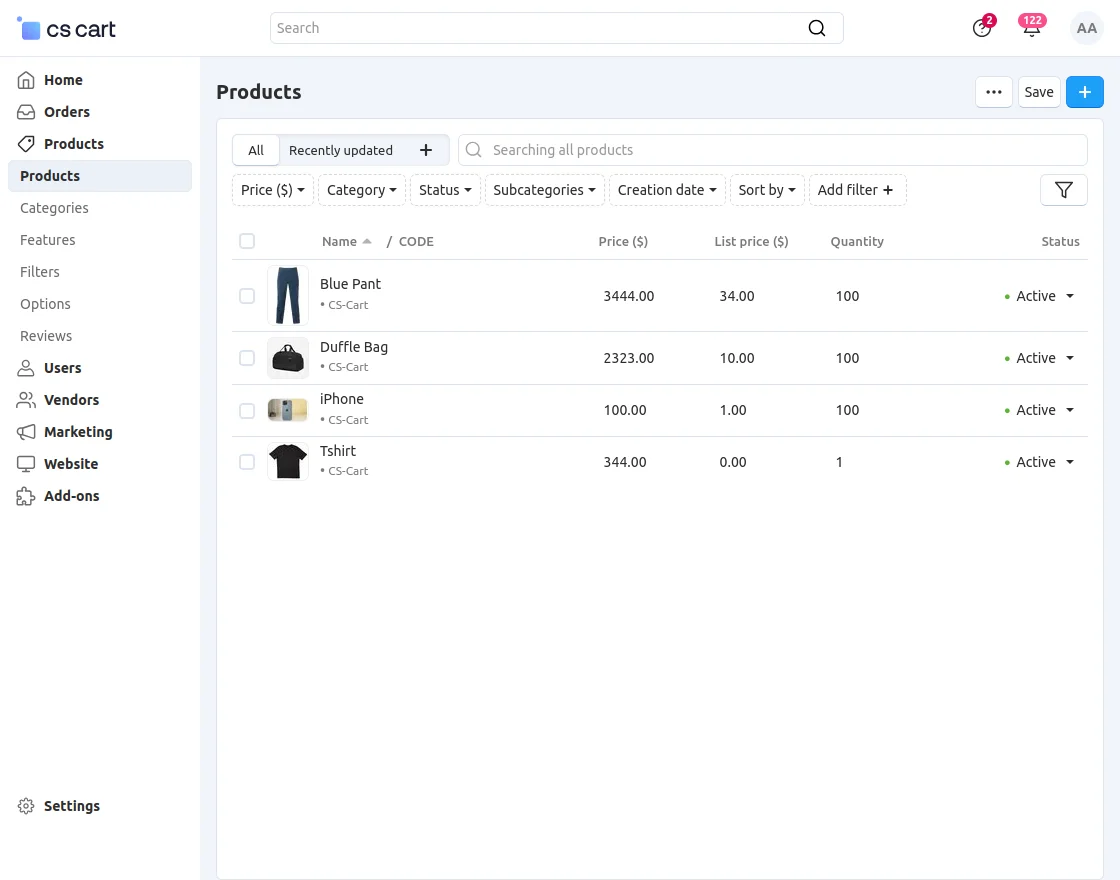

Now, the admin can select any product to add the custom field to add the specific features for a particular product.

cs-cartdemo.webkul.com_advanced-rma-182-75-44-194-demo_demoadmin.php_dispatchproducts.manage

Now you can check that only two “Custom Fields” are mandatory to fill. Because while adding the custom field “Required” checkbox was not marked for the remaining fields

cs-cartdemo.webkul.com_advanced-rma-182-75-44-194-demo_demoadmin.php_dispatchproducts.updateproduct_id12-2

FrontEnd View

Here customers can only view the Custom Fields which fill by the admin.

cs-cartdemo.webkul.com_advanced-rma-115-113-191-18-demo_apparel_mens-clothing_100g-pants_

Support

This is all about CS-Cart Product Custom Field. Still, have any issues, feel free to contact us at http://webkul.uvdesk.com and let us know your views to make the module better.

Besides this, you can hire CS-Cart developers for custom services and explore our quality CS-Cart add-ons.

Current Product Version - 1.0.0

Supported Framework Version - 4.13.x, 4.14.x, 4.15.x

. . .
